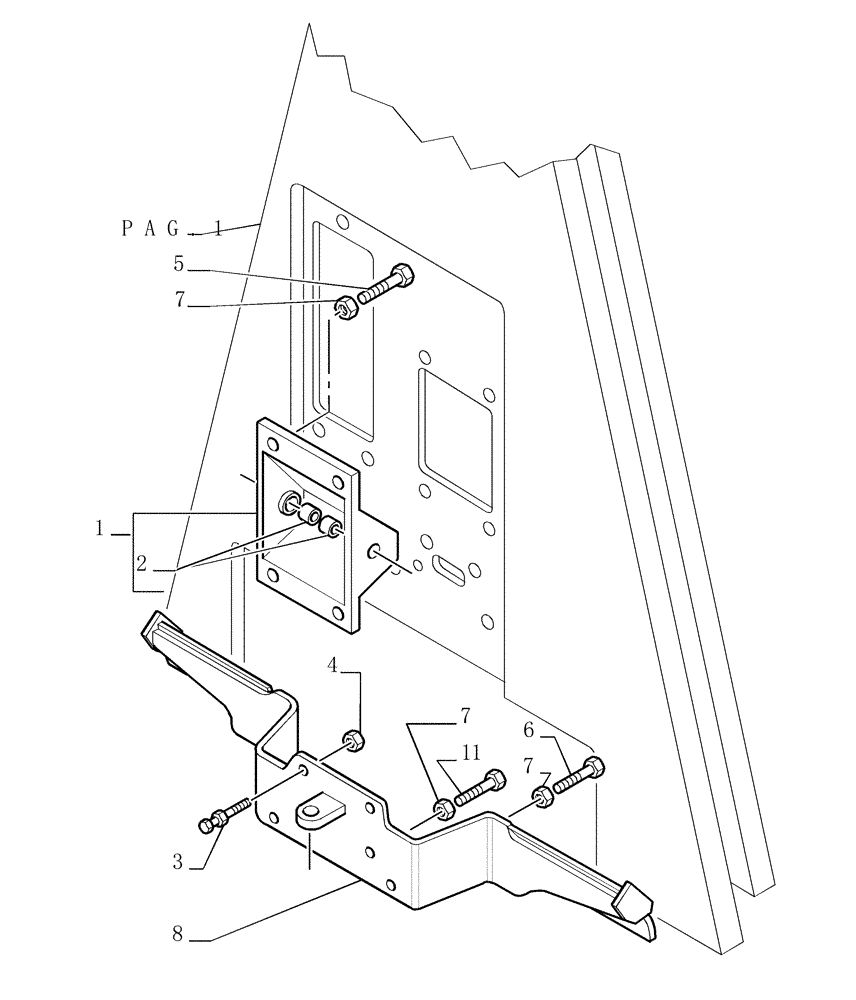

Запчасти Case 1850K (9.653[28]) - ROPS CAB - COMPONENTS - OPTIONAL CODE 784110191 (19) - OPTIONS

1

76046806

SUPPORT

Assy

1шт.

2

79048068

ROLLER BEARING,20 mm ID x 26 mm OD x 16 mm

20 x 26 x 16 mm

2шт.

3

79102461

PIN

1шт.

4

12575611

LOCK NUT,M10 x 1.25

M10 x 1.25 x 12.3

2шт.

5

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

4шт.

6

11106424

SCREW,Hex, M10 x 30mm, Cl 8.8, Full Thd

3шт.

7

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

8шт.

8

76046804

FOOTREST

1шт.

11

15214931

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9, Full Thd

1шт.
