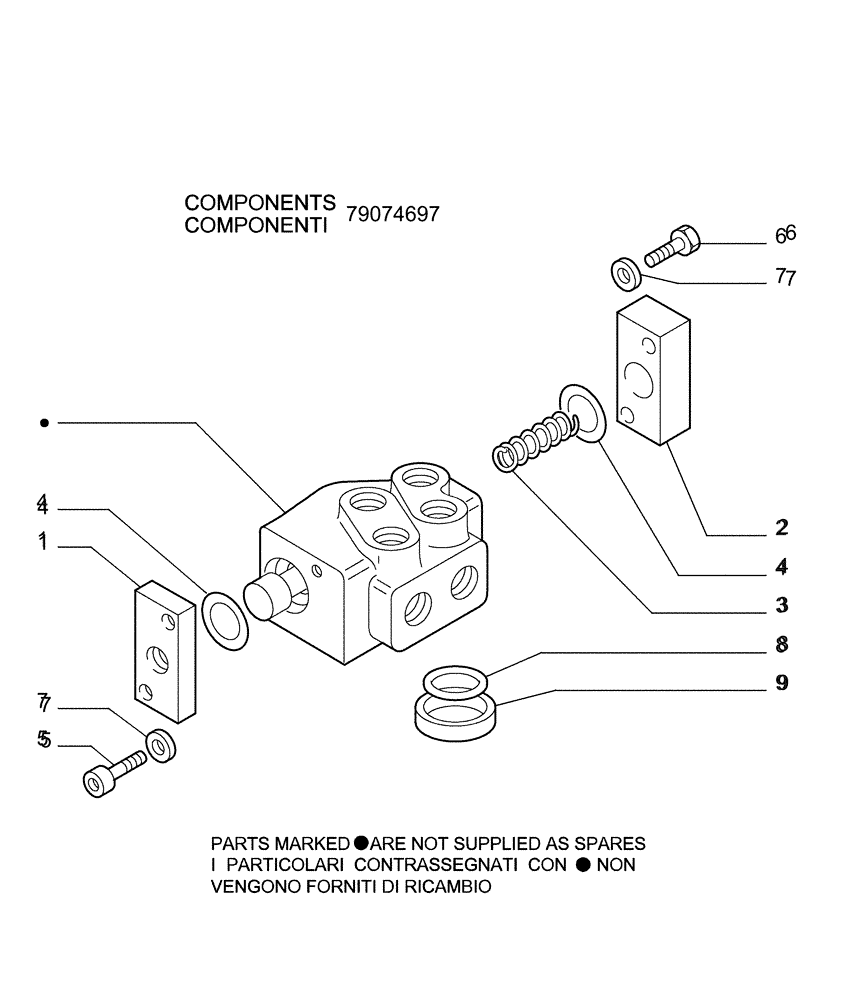

Запчасти Case 1850K (9.478[06]) - HYDRAULIC FUNCTION - PAT- OPTIONAL CODE 784341001 (19) - OPTIONS

1

79075298

COVER

Assy

1шт.

2

79075299

COVER

1шт.

3

8295977

SPRING

1шт.

4

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

(M25.07 ID x 2.62 Thk)

2шт.

5

14306437

HEX SOC SCREW,M8 x 25mm, Cl 10.9

M8 x 1.25 x 25

2шт.

6

14306537

HEX SOC SCREW,M8 x 30mm, Cl 10.9

M8 x 30

2шт.

7

10569379

LOCK WASHER

M8

4шт.

8

14458180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

(M29.82 ID x 2.62 Thk)

2шт.

9

79091789

RING

2шт.
