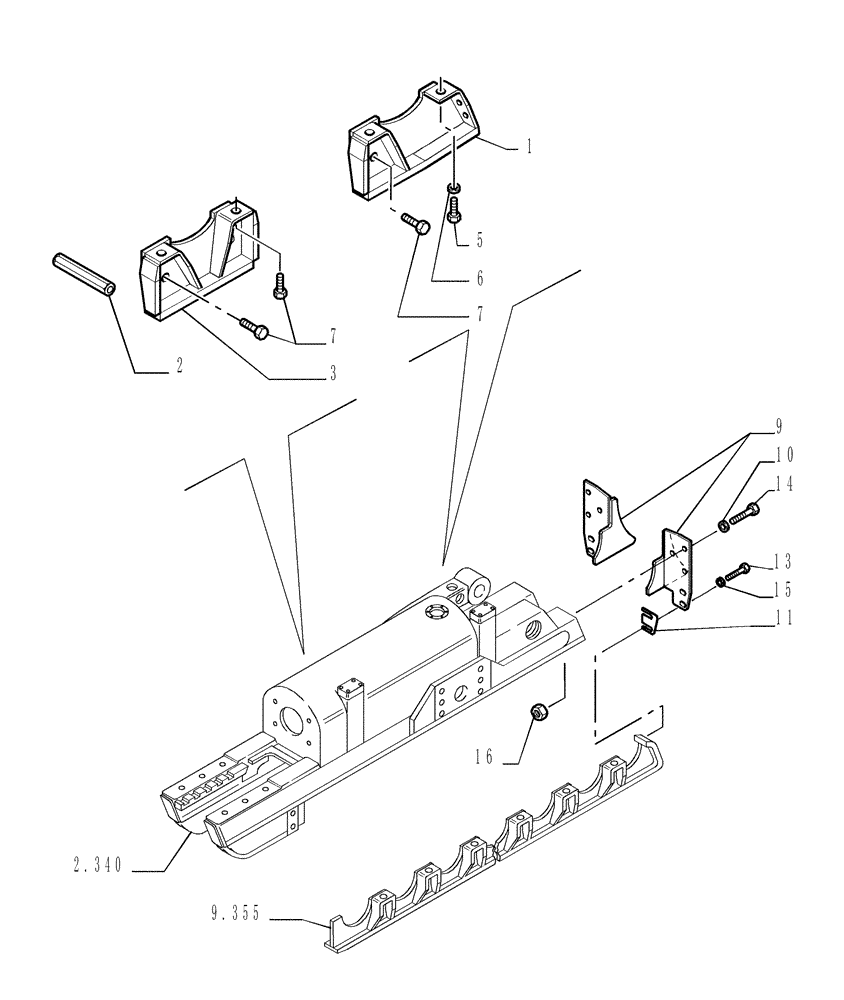

Запчасти Case 1850K (9.353[01A]) - TRACK ROLLER GUARDS - SHORT - OPTIONAL CODE 784119101 - VERSION (02-03) (19) - OPTIONS

1

76090763

GUARD

Lower LH Assy, Aprx 16.5" x 7"

2шт.

1

76090764

GUARD

Lower RH Assy, Aprox 16.5" x 7"

2шт.

2

76071498

SPACER

6шт.

3

76090765

GUARD

LH

2шт.

3

76090766

GUARD

RH

2шт.

5

15840537

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

12шт.

6

79005240

WASHER,16.8mm ID x 36mm OD x 8mm Thk

M16 x 35.5 x 8

12шт.

7

11383631

BOLT,Hex, M20 x 1.5 x 50, 10.9, Full Thd

12шт.

8

79032222

WASHER,21mm ID x 40mm OD x 8mm Thk

12шт.

9

76093926

GUARD

Rear LH

2шт.

9

76095074

GUARD

Rear RH

2шт.

10

12644931

WASHER,14.4mm ID x 32mm OD x 4mm Thk

12шт.

11

76093928

SPACER

4шт.

13

11112831

SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd

8шт.

14

11115631

BOLT,Hex, M14 x 35, 10.9, Full Thd

12шт.

15

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

8шт.

16

11702921

NUT,M12, Cl 10

8шт.
