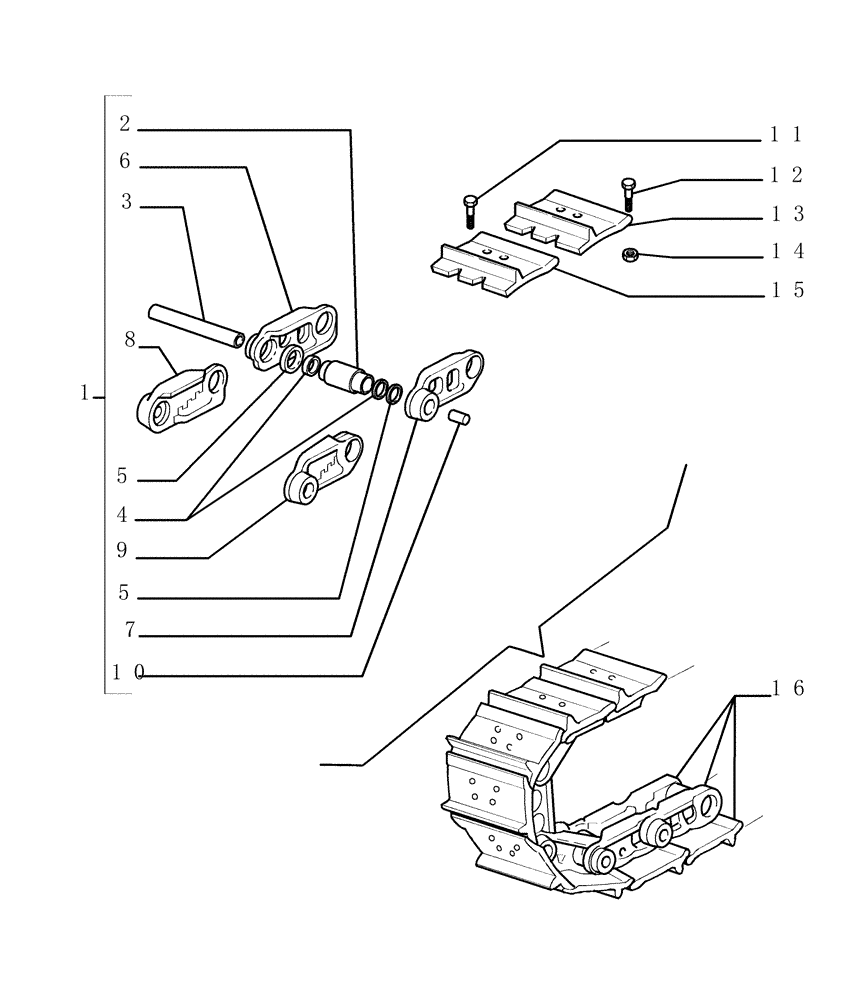

Запчасти Case 1850K (9.347[01]) - SALT TRACK CHAIN - SHOES (L=610MM) - OPTIONAL CODE 774113031 (19) - OPTIONS

1

76090728

TRACK ASSY

2шт.

2

76040934

BUSHING

40шт.

3

76040933

PIN

40шт.

4

76040938

SPACER

80шт.

5

76040937

OIL SEAL

80шт.

6

76090729

TRACK LINK

RH

39шт.

7

76090730

TRACK LINK

LH

39шт.

8

76090731

CONNECTING LINK

RH, In Alternative

1шт.

9

76090732

CONNECTING LINK

LH, In Alternative

1шт.

10

76040943

PLUG

40шт.

11

76040927

BOLT,Hex, 3/4" - 16

4шт.

12

76040849

STEP BOLT,Hex, 3/4" - 16 x 2-3/8"

156шт.

13

76090736

TRACK SHOE

(1 Grouser) 610 mm

39шт.

14

76040850

SQUARE NUT

156шт.

15

76090737

TRACK SHOE

(1 Grouser) Master

1шт.

16

76090735

TRACK ASSY

with Shoes (610 mm)

2шт.
