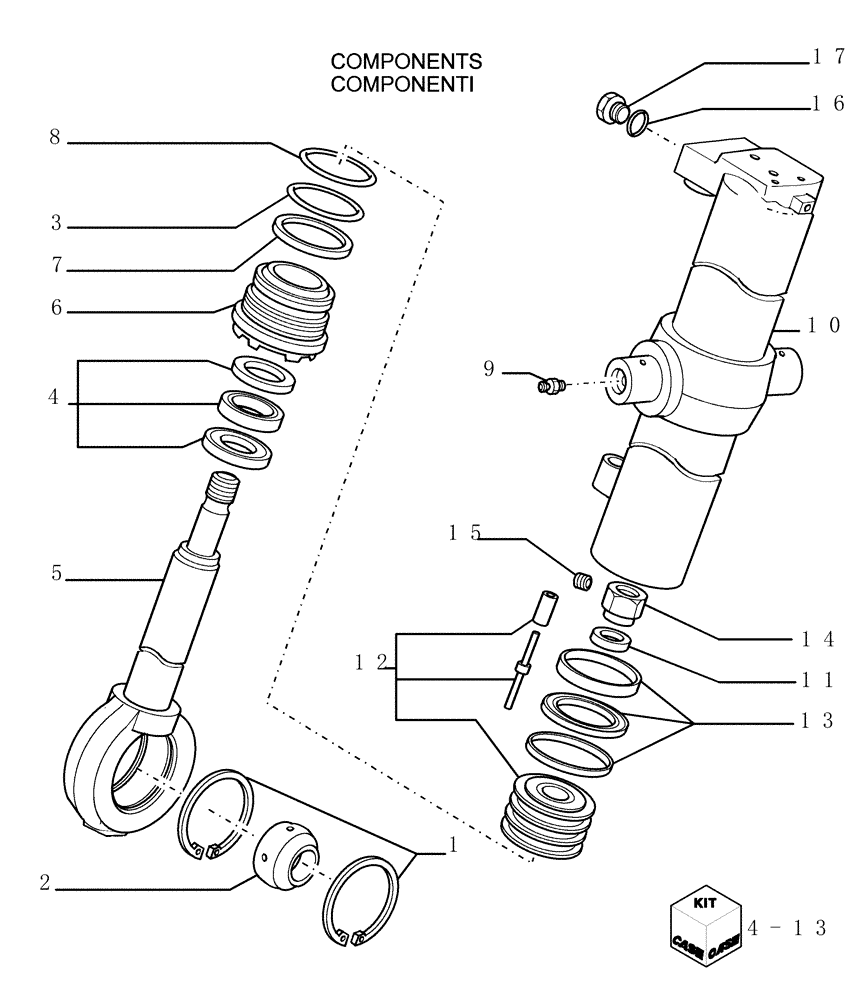

Запчасти Case 1850K (3.443[02]) - LIFT CYLINDERS - FRONT IMPLEMENT (07) - HYDRAULIC SYSTEM/FRAME

1

11062976

SNAP RING,Int, M100 x 3

2шт.

2

76004446

SPHERICAL BEARING,40mm ID x 100mm OD x 58mm W

In Alternative

1шт.

2

76004501

SPHERICAL BEARING,80 mm ID x 100 mm OD x 58 mm

In Alternative

1шт.

3

14465880

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

(M94.84 ID x 3.53 Thk)

1шт.

4

71452371

SEAL KIT

1шт.

5

71470772

ROD

1шт.

6

71470738

GLAND

1шт.

7

71470742

PLATE

1шт.

8

71470761

O-RING,5mm Thk x 85mm ID, 90 Duro

1шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

71470778

BARREL

RH, if standing in front of machine looking at blade; LH, From sitting in operator's seat facing forward

1шт.

10

71470771

BARREL

LH, if standing in front of machine looking at blade; RH, From sitting in operator's seat facing forward

1шт.

11

71470740

WASHER

1шт.

12

71470737

PISTON ASSY

1шт.

13

71470760

SEAL

1шт.

14

71470741

NUT

1шт.

15

79099830

SET SCREW,less Hex Socket, M10 x 1.5 x 10mm

1шт.

16

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

17

8298367

PLUG

2шт.
