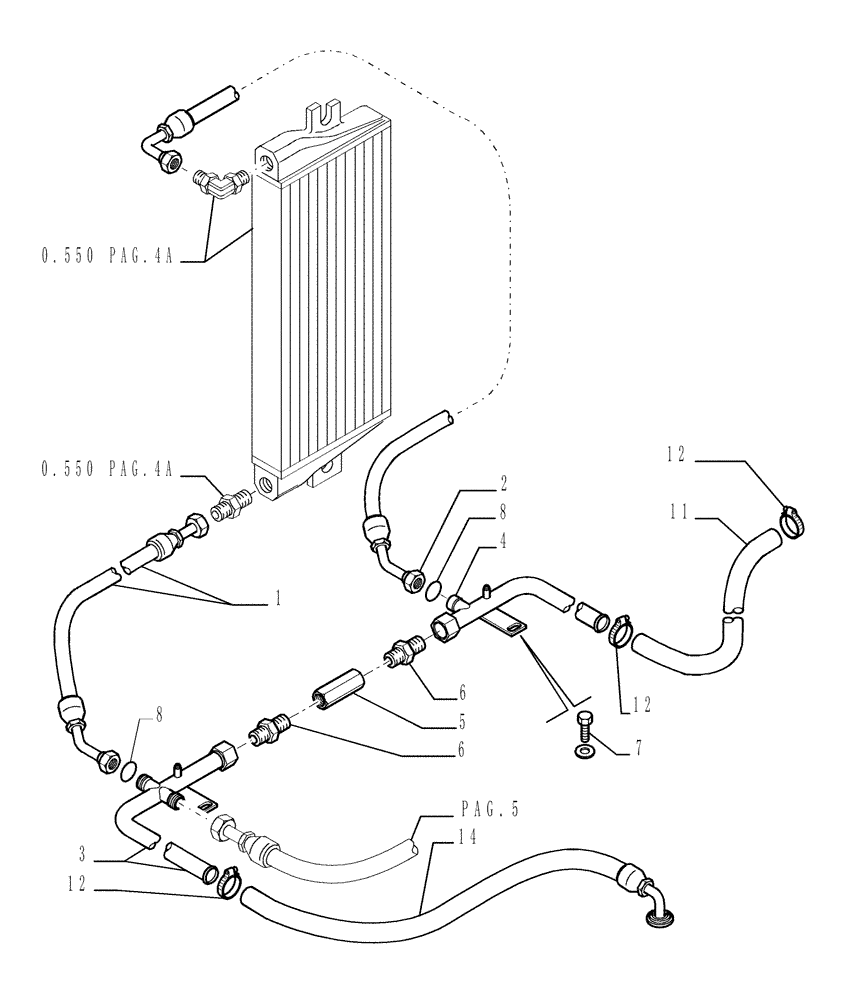

Запчасти Case 1850K (3.434[04A]) - HYDRAULIC SYSTEM PIPING (07) - HYDRAULIC SYSTEM/FRAME

1

76095114

HYDRAULIC HOSE

LH, Serial Range: -D3983

1шт.

2

76095115

HYDRAULIC HOSE

RH, Serial Range: -D3983

1шт.

3

76095169

RIGID TUBE,26 mm ID, 32 mm OD, 500, 290 mm Length

LH, Serial Range: -D3984

1шт.

4

76095170

RIGID TUBE

RH, Serial Range: -D3984

1шт.

5

76040628

CHECK VALVE

5 Bar

1шт.

6

76053698

HYD CONNECTOR

2шт.

7

11112231

SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

8

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

M18.77 x 1.78

2шт.

11

76095172

HYDRAULIC HOSE

, Serial Range: -D3984

1шт.

12

79083845

HOSE CLAMP,32mm - 50mm, Worm Gear

32 x 50 mm, Serial Range: -D3984

3шт.

14

76095171

HYDRAULIC HOSE

Return, Serial Range: -D3984

1шт.
