(3.434[04]) - HYDRAULIC SYSTEM PIPING

Запчасти Case 1850K (3.434[04]) - HYDRAULIC SYSTEM PIPING (07) - HYDRAULIC SYSTEM/FRAME

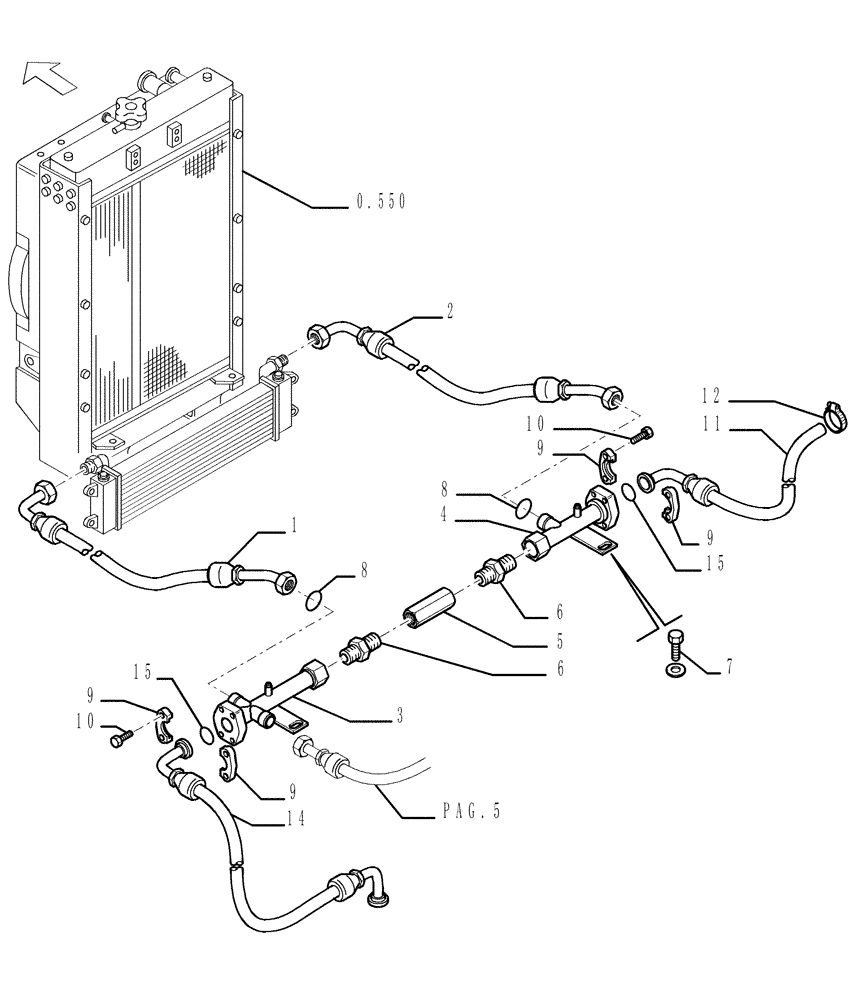

Схема запчастей Case 1850K - (3.434[04]) - HYDRAULIC SYSTEM PIPING (07) - HYDRAULIC SYSTEM/FRAME
pag.5
9
11
9
9
7
10
6
12
8
1
8
10
14
3
2
0.550
15
5
4
9
15
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

76072323

HYDRAULIC HOSE

LH, Serial Range: -C3983

1шт.

2

76072324

HYDRAULIC HOSE

RH, Serial Range: -C3983

1шт.

3

76069980

TUBE,26 mm ID, 32 mm OD, 240 mm Length

LH, Serial Range: -C3984

1шт.

4

76069981

TUBE,26 mm ID, 32 mm OD, 195 mm Length

RH, Serial Range: -C3984

1шт.

5

76040628

CHECK VALVE

5 Bar

1шт.

6

76053698

HYD CONNECTOR

2шт.

7

11112231

SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

8

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

M18.77 x 1.78

2шт.

9

79093684

HALF-FLANGE

1 1/4", Serial Range: -C3984

4шт.

10

14420131

HEX SOC SCREW,M10 x 1.5 x 25mm, Cl 10.9, Full Thd

, Serial Range: -C3984

8шт.

11

76071110

HYDRAULIC HOSE

, Serial Range: -C3984

1шт.

12

79083845

HOSE CLAMP,32mm - 50mm, Worm Gear

32 x 50 mm, Serial Range: -C3984

1шт.

14

76071070

HYDRAULIC HOSE

Return, Serial Range: -C3984

1шт.

15

14464081

O-RING,50.39mm ID x 3.53" Width

(M37.69 ID x 3.53 Thk) - In Alternative, Serial Range: -C3984

2шт.

15

70924192

O-RING

M37.69 x 3.53, In Alternative, Serial Range: -C3984

2шт.
