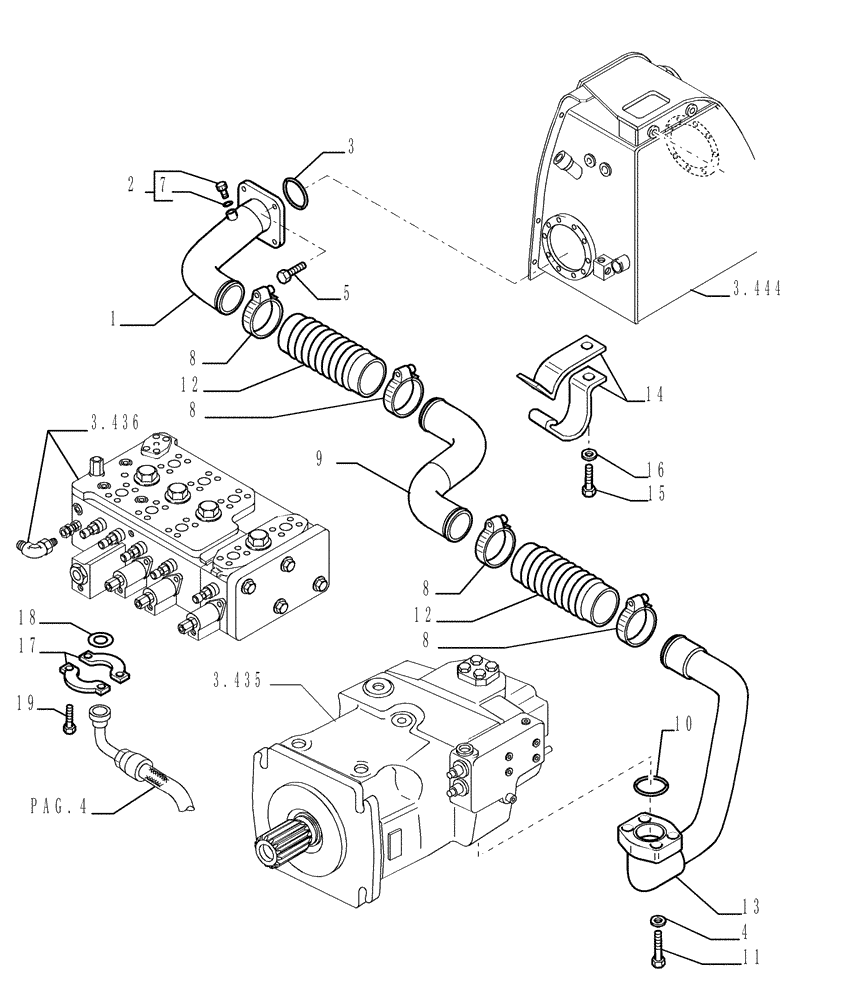

Запчасти Case 1850K (3.434[01]) - HYDRAULIC SYSTEM PIPING (07) - HYDRAULIC SYSTEM/FRAME

1

76079235

HYD TUBE

Suction

1шт.

2

10118540

PLUG,M10 x 1 x 11, Brass

Assy

1шт.

3

14465481

O-RING,3.234" ID x 3.512" OD x 0.139"

(M82.14 ID x 3.53 Thk)

1шт.

4

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

4шт.

5

14311031

HEX SOC SCREW,M12 x 1.75 x 25mm, Cl 10.9, Full Thd

5шт.

7

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

8

79083849

HOSE CLAMP,M70-90

4шт.

9

76069244

HYD TUBE

1шт.

10

14465580

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

11

11120331

BOLT,Hex, M16 x 120, 10.9

, Serial Range: -C3984

4шт.

11

11118731

BOLT,Hex, M16 x 45, 10.9

, Start Serial: D3984

4шт.

12

76069247

HOSE,76.00 mm ID x 200.00 mm

2шт.

13

76069830

HYD TUBE

Suction, Serial Range: -C3984

1шт.

76069830 = 76095167 + 11118731 (Qta=4)

1шт.

13

76095167

HYD TUBE

Suction, Start Serial: D3984

1шт.

14

76069256

BRACKET

3шт.

15

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

16

79005244

WASHER,10.6mm ID x 25mm OD x 6mm Thk

3шт.

17

79093684

HALF-FLANGE

1 1/4"

2шт.

18

14464081

O-RING,50.39mm ID x 3.53" Width

(M37.69 ID x 3.53 Thk) - In Alternative

1шт.

18

70924192

O-RING

M37.69 x 3.53, In Alternative

1шт.

19

14420131

HEX SOC SCREW,M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.
