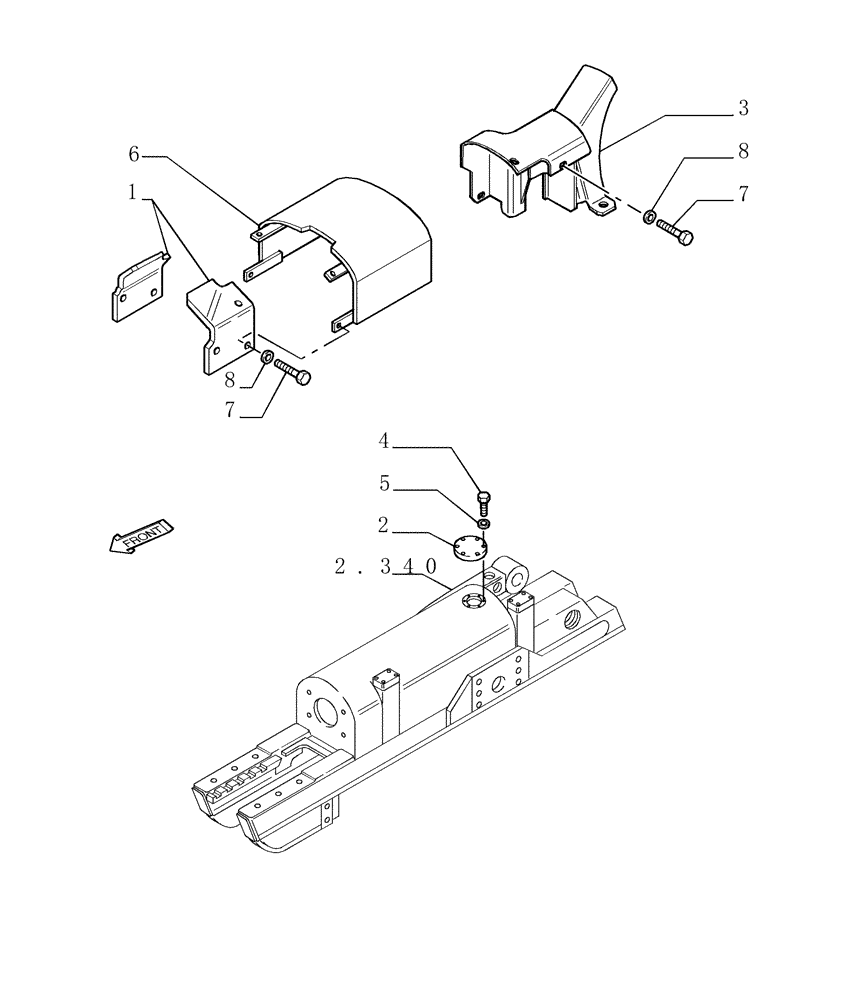

Запчасти Case 1850K (2.348[01]) - TRACK GUARDS (04) - UNDERCARRIAGE

1

76090564

GUARD

Front LH

2шт.

1

76090565

GUARD

Front RH

2шт.

2

76090567

COVER

2шт.

3

76090562

GUARD

Rear LH

1шт.

3

76090563

GUARD

Rear RH

1шт.

4

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

12шт.

5

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

12шт.

6

76090566

GUARD

Front

2шт.

7

11112231

SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

21шт.

8

14496731

WASHER,M12 x 24 x 2.5 Thk

21шт.

10

76090567

COVER

2шт.

11

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

12шт.

12

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

12шт.
