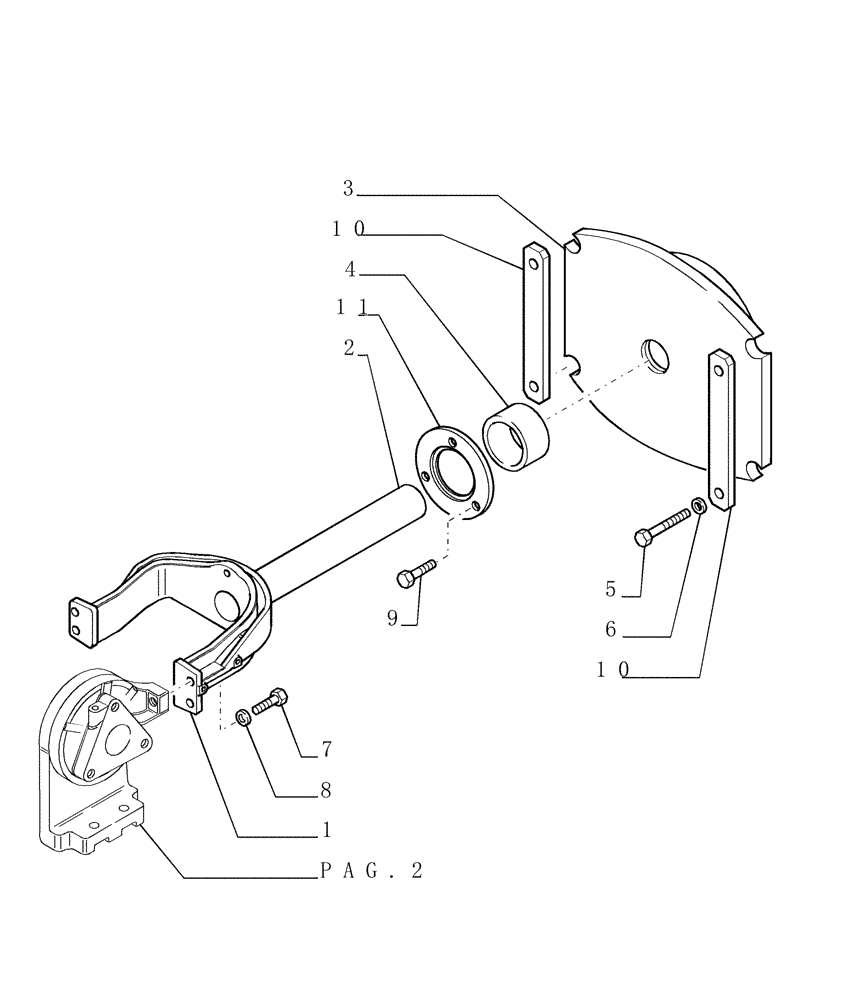

Запчасти Case 1850K (2.346[03]) - TRACK IDLER - YOKE (04) - UNDERCARRIAGE

1

76090549

YOKE

, Serial Range: -C3982

2шт.

76090549 = 76093951 + 76093912

1шт.

1

76093951

YOKE

, Start Serial: D3982

2шт.

2

76040872

ROD

, Serial Range: -C3982

2шт.

2

76093912

ROD

Track Idler, Start Serial: D3982

2шт.

3

76080847

COVER

2шт.

4

76040861

BUSHING

2шт.

5

11112831

SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd

8шт.

6

14496731

WASHER,M12 x 24 x 2.5 Thk

8шт.

7

15981034

BOLT,Hex, M16 x 1.5 x 55mm, Cl 10.9

8шт.

8

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

8шт.

9

15970531

BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

10

76080848

PLATE

2шт.

11

76068470

RETAINING PLATE

2шт.
