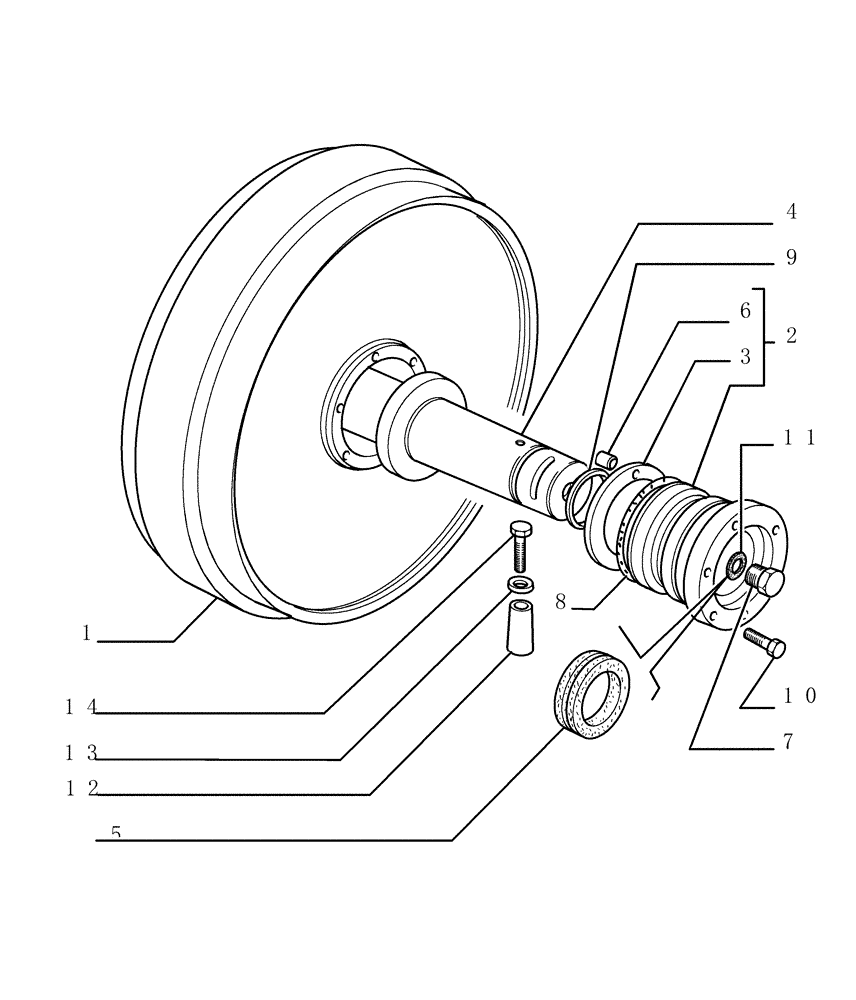

Запчасти Case 1850K (2.346[01]) - TRACK IDLER - WHEEL (04) - UNDERCARRIAGE

1

76090554

IDLER WHEEL

2шт.

2

79103256

HOUSING

Assy

4шт.

3

79103257

BUSHING

1шт.

4

76029504

SHAFT

2шт.

5

79103260

SEAL,67mm ID x 94mm OD x 38mm Thk

4шт.

6

79103263

ROLL PIN

1шт.

7

79019318

PLUG

2шт.

8

14466280

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

(M107.54 ID x 3.53 Thk)

4шт.

9

14464680

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

4шт.

10

14233731

LOCK BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

11

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

2шт.

12

79005163

PIN,26mm OD x 60mm L

4шт.

13

79014970

WASHER

4шт.

14

15233231

BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9, Full Thd

4шт.
