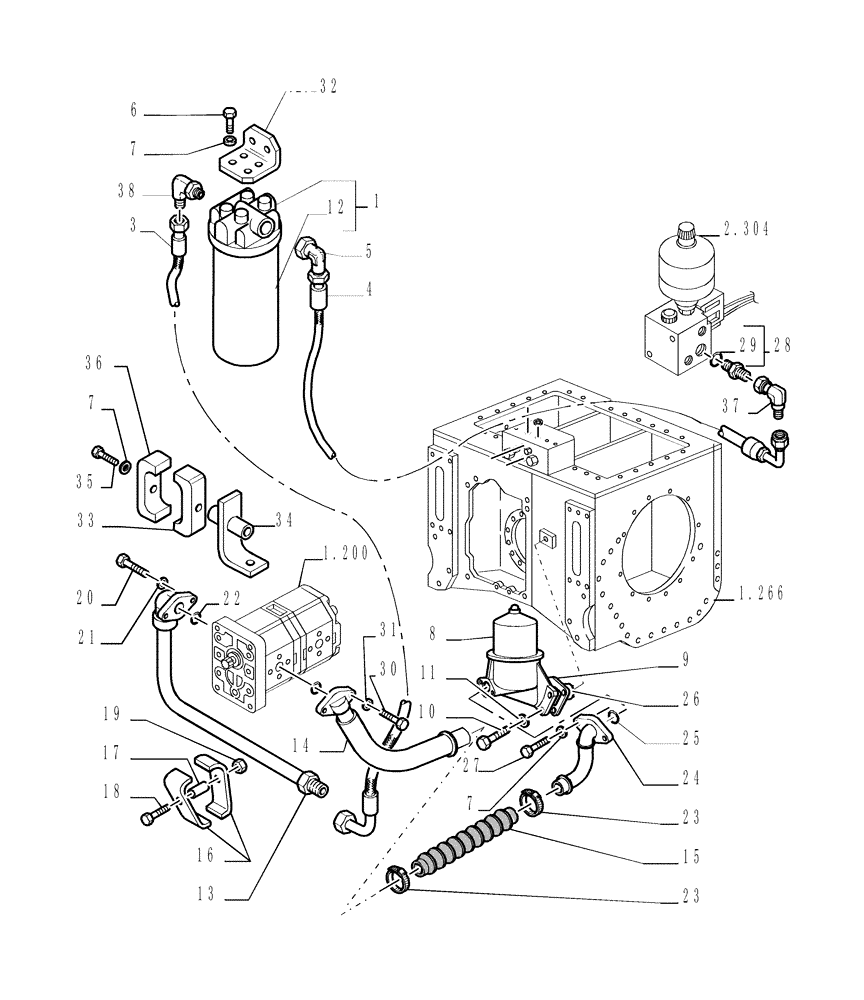

Запчасти Case 1850K (2.319[01]) - BRAKE/STEERING DIFFERENTIAL CONNECTING PIPES (04) - UNDERCARRIAGE

1

76076924

FILTER ASSY

1шт.

3

76093644

FLEXIBLE HOSE

1шт.

4

76054882

FLEXIBLE HOSE

1шт.

5

79070959

ELBOW

1шт.

6

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

4шт.

7

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

8

1931179

FILTER ASSY

See SGR.1.211 Pg. 13

1шт.

9

76028084

GASKET,0.4mm Thk

1шт.

10

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

3шт.

11

14496731

WASHER,M12 x 24 x 2.5 Thk

3шт.

12

76076923

ELEMENT

1шт.

13

76069945

HYD TUBE,12 mm ID, 16 mm OD, 360, 110 mm Length

1шт.

14

76046808

HYD TUBE

1шт.

14a

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

15

76087682

HOSE

1шт.

16

76046655

CLAMP

2шт.

17

76046654

SPACER

2шт.

18

11108031

BOLT,Hex, M10 x 90mm, Cl 10.9

1шт.

19

11701721

NUT,M10, Cl 10

1шт.

20

10902831

SCREW,Hex, M6 x 30mm, Cl 10.9

2шт.

21

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

2шт.

22

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

23

79083846

HOSE CLAMP,M40-60

2шт.

24

76046807

HYD TUBE

1шт.

25

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

26

14458281

O-RING,1.237" ID x 1.443" OD x 0.103"

(M31.42 ID x 2.62 Thk)

1шт.

27

11343831

SCREW,Hex, M10 x 1.25 x 50mm, Cl 10.9

2шт.

28

79066944

HYD CONNECTOR

1шт.

29

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

30

16044131

BOLT,Hex, M8 x 45mm, Cl 10.9

2шт.

31

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

32

76079417

BRACKET

1шт.

33

76080520

BRACKET

1шт.

34

76080521

BRACKET

1шт.

35

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

36

79084821

CLAMP

1шт.

37

76039236

ELBOW

1шт.

38

79065436

HYD CONNECTOR

1шт.
