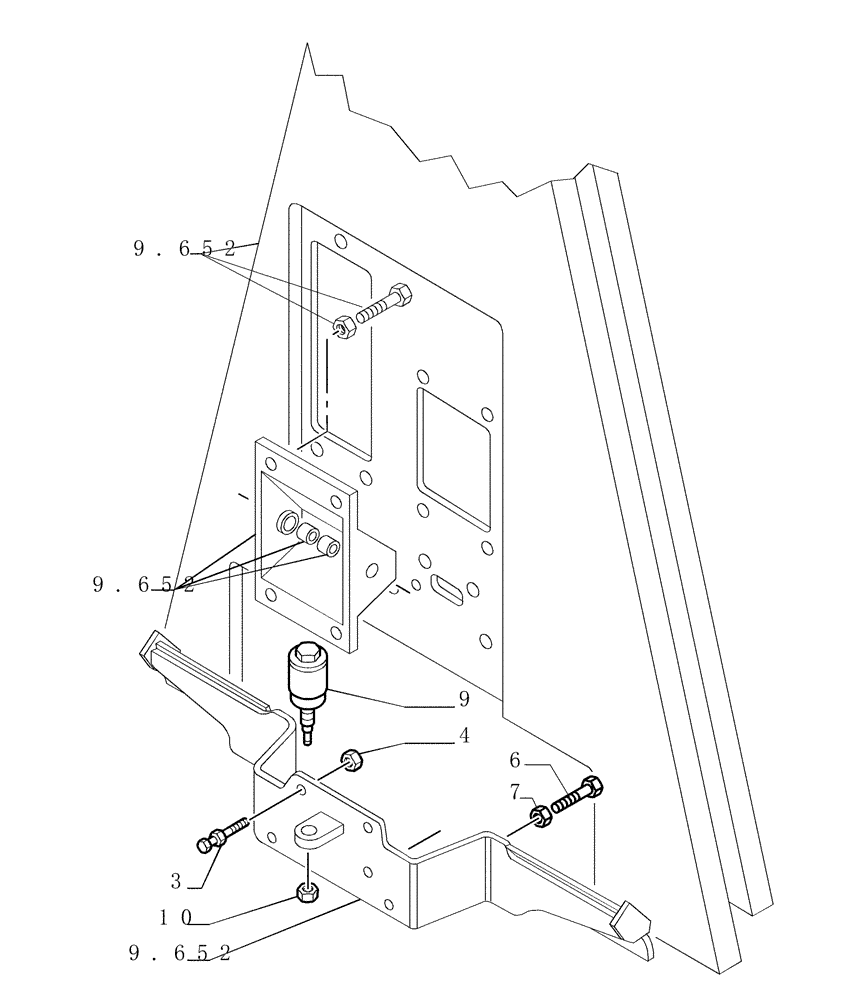

Запчасти Case 1850K (2.304[05]) - BRAKE CONTROLS - COMPONENTS (04) - UNDERCARRIAGE

3

76031346

SCREW,Rd Slotted, M8 x 1.25 x 47mm

1шт.

4

16102321

THIN NUT,Thin, M8 x 1.25, Cl 05

1шт.

6

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

3шт.

7

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

8

76078477

BRACKET

1шт.

9

76031339

CONTROL VALVE,M16 x 1.5

Assy, See Pg. 7

1шт.

10

16103921

NUT

1шт.
