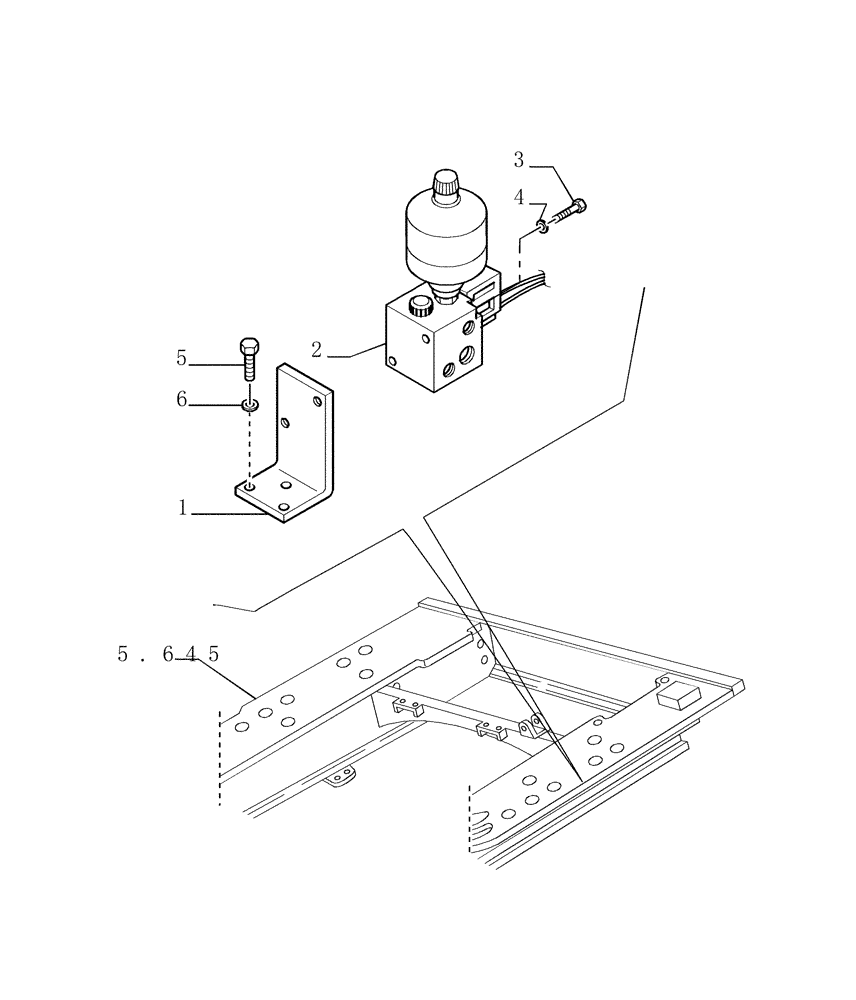

Запчасти Case 1850K (2.304[02]) - BRAKE CONTROLS - COMPONENTS (04) - UNDERCARRIAGE

1

76078477

BRACKET

1шт.

2

76047028

BRAKE VALVE

Assy, See Pg. 6

1шт.

3

16046131

SCREW,Hex, M8 x 100mm, Cl 10.9

2шт.

4

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

3шт.

6

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.
