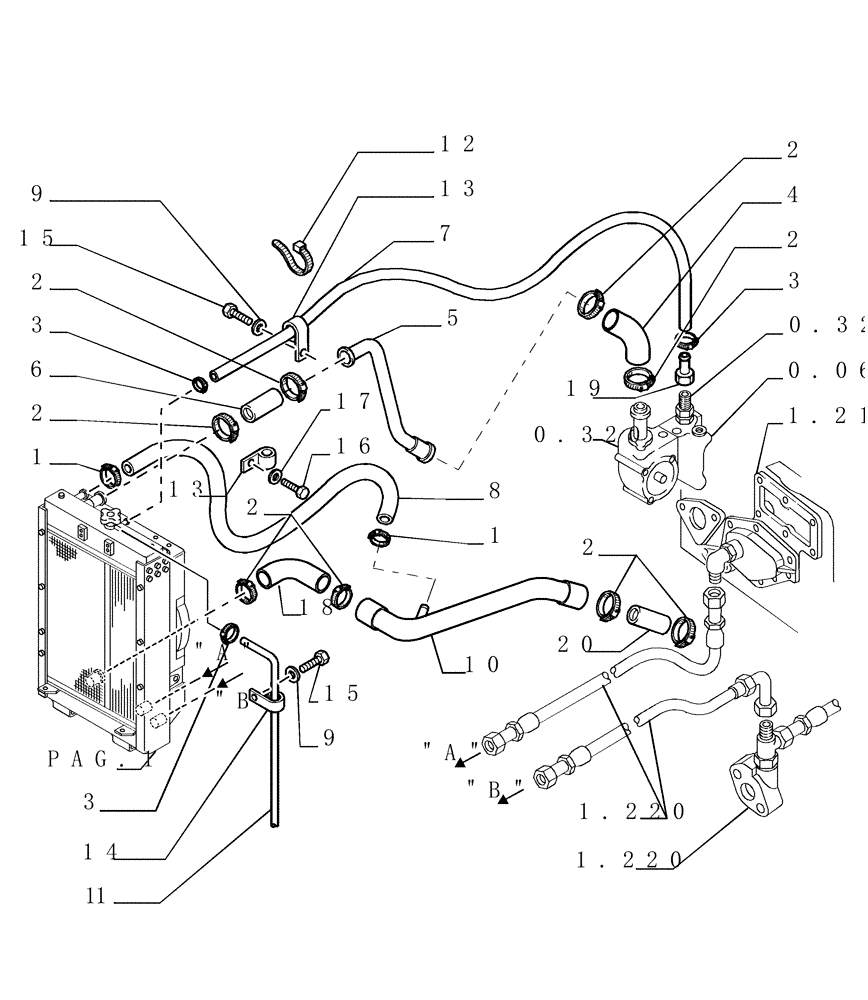

Запчасти Case 1850K (0.550[03]) - ENGINE COOLING SYSTEM - PIPING (01) - ENGINE

1

79083843

HOSE CLAMP,M20-35

2шт.

2

79083847

HOSE CLAMP,M50-70

6шт.

3

79084753

HOSE CLIP,M10-18

2шт.

4

76079072

HOSE

, Serial Range: -C3984

1шт.

4

76095165

HOSE,50mm ID x 235mm L

, Start Serial: D3984

1шт.

5

76080531

TUBE

1шт.

5

76095163

TUBE

1шт.

6

76039648

HOSE,57.00 mm ID x 90.00 mm

2шт.

7

78100214

HOSE

1шт.

8

76052928

HOSE,25.00 mm ID x 1350.00 mm

1шт.

9

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

10

76079075

TUBE

, Serial Range: -C3984

1шт.

76079075 = 76095162 + 76095164

1шт.

10

76095162

TUBE

, Start Serial: D3984

1шт.

11

76052913

HOSE,8.00 mm ID x 1600.00 mm

1шт.

12

4982514

CABLE TIE,188mm L

CABLE STRAP 370 mm lg.

2шт.

13

10448890

CLAMP,36mm, Coat, P Type

36 mm

3шт.

14

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

3шт.

15

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

6шт.

16

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

17

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.

18

76079074

HOSE

, Serial Range: -C3984

1шт.

18

76095164

HOSE

, Start Serial: D3984

1шт.

19

76045256

FITTING

1шт.

20

79106868

HOSE,50.00 mm ID x 95.00 mm

1шт.
