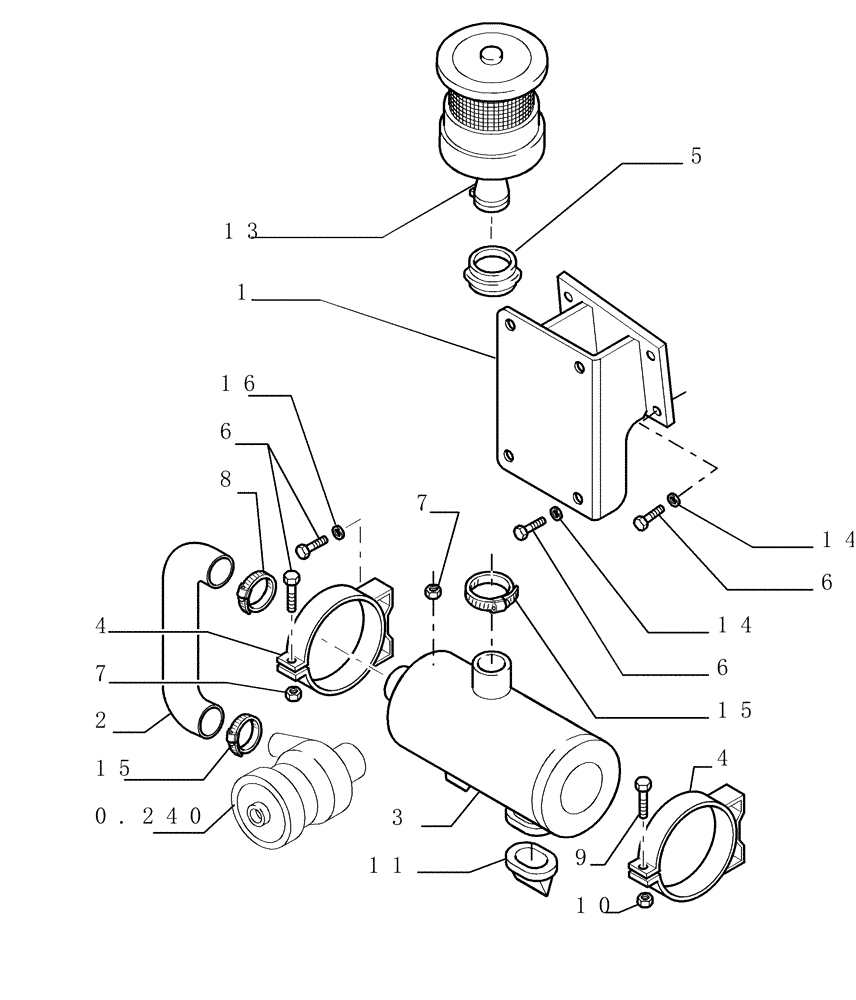

Запчасти Case 1850K (0.540[01]) - DRY AIR CLEANER (01) - ENGINE

1

76076948

SUPPORT

1шт.

2

76076982

INTAKE AIR HOSE,101.60 mm ID, 127.00 mm ID x 424.50 mm

1шт.

3

79098801

AIR CLEANER

12"- Assy, See Pg. 2

1шт.

4

79106929

BRACKET

2шт.

5

76076960

INTAKE AIR HOSE,127.00 mm ID, 138.00 mm ID x 116.00 mm

1шт.

6

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

8

71421022

HOSE CLAMP,114.3mm - 123.2mm

1шт.

9

16044031

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

10

16100821

NUT,M8, Cl 10

2шт.

11

73042943

DUST VALVE

1шт.

13

76046298

AIR PRE-CLEANER ASSY

1шт.

14

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

8шт.

15

76079342

HOSE CLAMP

2шт.

16

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

8шт.
