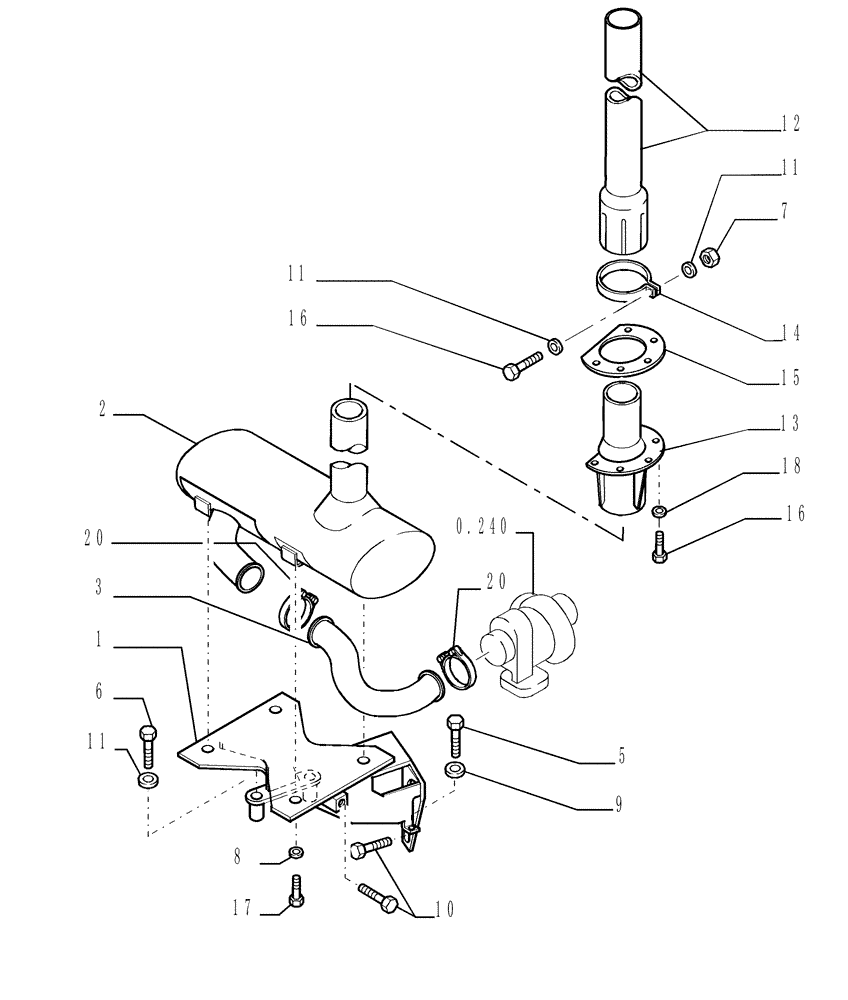

Запчасти Case 1850K (0.530[01]) - MUFFLER (01) - ENGINE

1

76095067

SUPPORT

1шт.

2

76095065

MUFFLER

1шт.

3

76080768

EXHAUST SYSTEM PIPE

1шт.

5

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

6

11107631

SCREW,Hex, M10 x 70mm, Cl 10.9

2шт.

7

11701721

NUT,M10, Cl 10

1шт.

8

12647001

WASHER,M8 x 25 x 2.5

4шт.

9

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

4шт.

10

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

6шт.

11

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

2шт.

12

76095066

EXHAUST SYSTEM PIPE

1шт.

13

76079394

SUPPORT

1шт.

14

76076957

CLAMP

1шт.

15

76079395

BRACKET

1шт.

16

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

6шт.

17

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

18

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

20

75208324

CLAMP

2шт.
