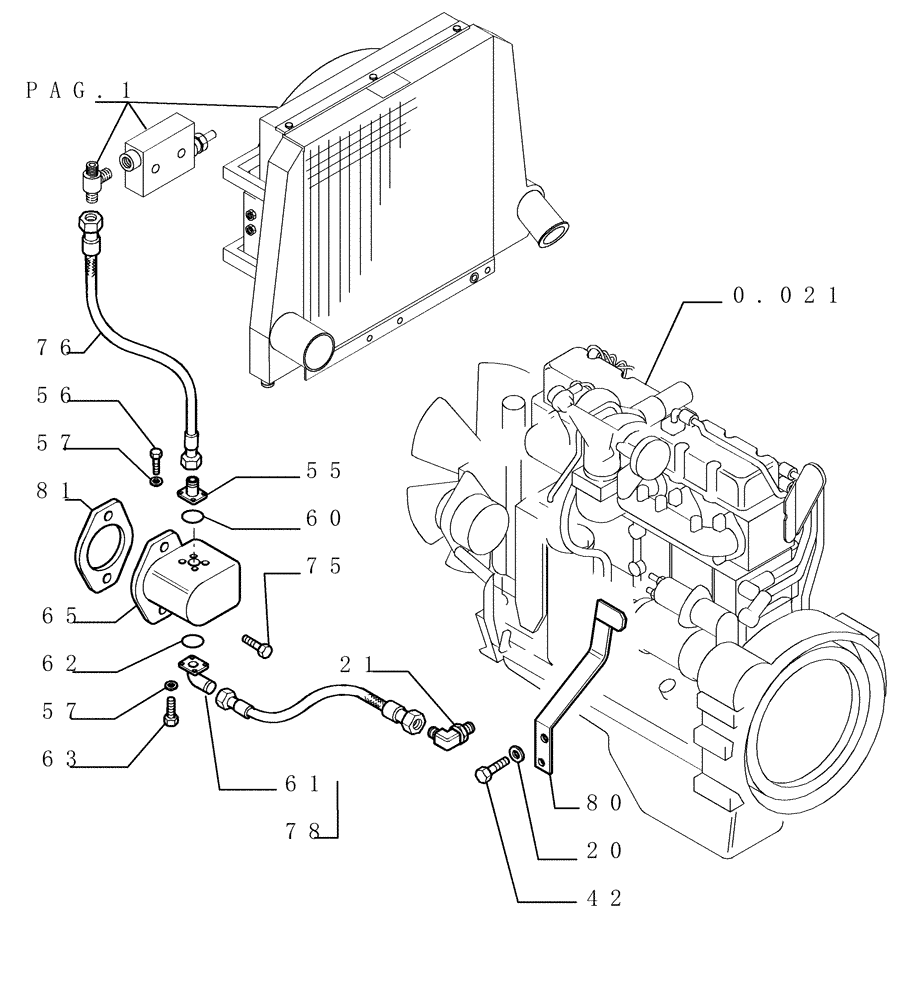

Запчасти Case 1850K (0.505[03]) - ENGINE - RELATED PARTS (01) - ENGINE

20

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

21

79067024

ELBOW

20/90°

1шт.

42

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

55

76079057

HYD CONNECTOR

1шт.

56

14432231

HEX SOC SCREW,M6 x 22mm, Cl 10.9, Full Thd

4шт.

57

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

8шт.

60

70927904

O-RING,2.62mm Thk x 18.72mm ID

1шт.

61

76079059

HYD CONNECTOR

1шт.

62

70924775

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

M23.47 ID x 2.62 Thk

1шт.

63

14305931

SCREW,M6 x 45mm, Cl 10.9

M6 x 45

4шт.

65

76079245

HYDRAULIC PUMP,8 CC

1шт.

75

14420131

HEX SOC SCREW,M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

76

76079219

HYDRAULIC HOSE

1шт.

78

76079228

HYDRAULIC HOSE

1шт.

80

76080706

SUPPORT

1шт.

81

76041796

GASKET

1шт.
