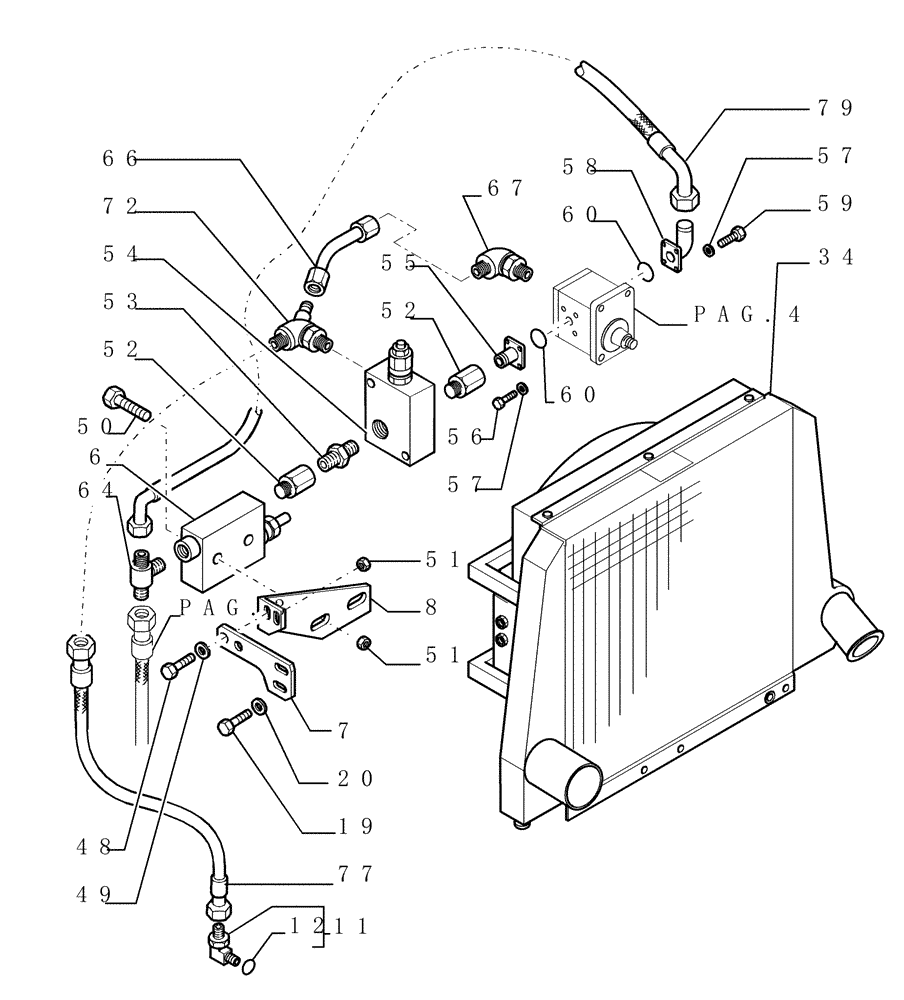

Запчасти Case 1850K (0.505[01]) - ENGINE - AFTERCOOLER (01) - ENGINE

6

76080601

HYDRAULIC VALVE

Sequence

1шт.

7

76079364

BRACKET

1шт.

8

76079056

BRACKET

1шт.

11

79067022

ELBOW

90°

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

19

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.

20

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

34

76079383

AFTERCOOLER

After Cooler Assy, See Pg. 4

1шт.

48

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

49

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

50

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

51

16100821

NUT,M8, Cl 10

4шт.

52

79098222

HYD CONNECTOR

2шт.

53

79074160

HYD CONNECTOR

1шт.

54

76080622

HYDRAULIC VALVE

1шт.

55

76079057

HYD CONNECTOR

1шт.

56

14432231

HEX SOC SCREW,M6 x 22mm, Cl 10.9, Full Thd

4шт.

57

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

8шт.

58

76079058

HYD CONNECTOR

1шт.

59

14305831

HEX SOC SCREW,M6 x 40mm, Cl 10.9

4шт.

60

70927904

O-RING,2.62mm Thk x 18.72mm ID

2шт.

64

76074936

TEE

1шт.

66

76079061

HYD TUBE,8 mm OD, 70, 10 mm Length

1шт.

67

79054400

ELBOW

1шт.

72

76079060

HYD CONNECTOR

1шт.

77

76079227

HYDRAULIC HOSE

1шт.

79

76079062

HYDRAULIC HOSE

1шт.
