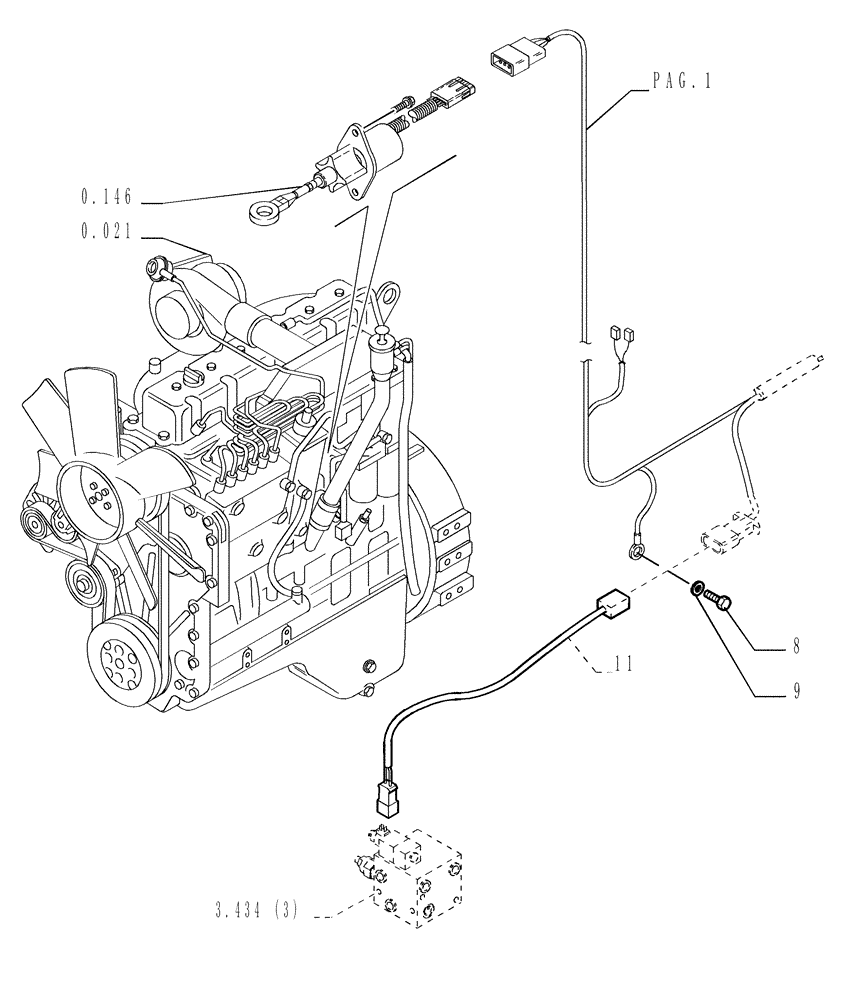

Запчасти Case 1850K (6.711[04]) - ELECTRICAL SYSTEM - ELECTRIC WIRING Electrical System / Decals

1

10117201

CLAMP

1шт.

3

10902331

SCREW,Hex, M6 x 18mm, Cl 10.9, Full Thd

1шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

5

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

1шт.

8

16043031

BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd

1шт.

9

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

11

76075287

WIRE HARNESS

1шт.
