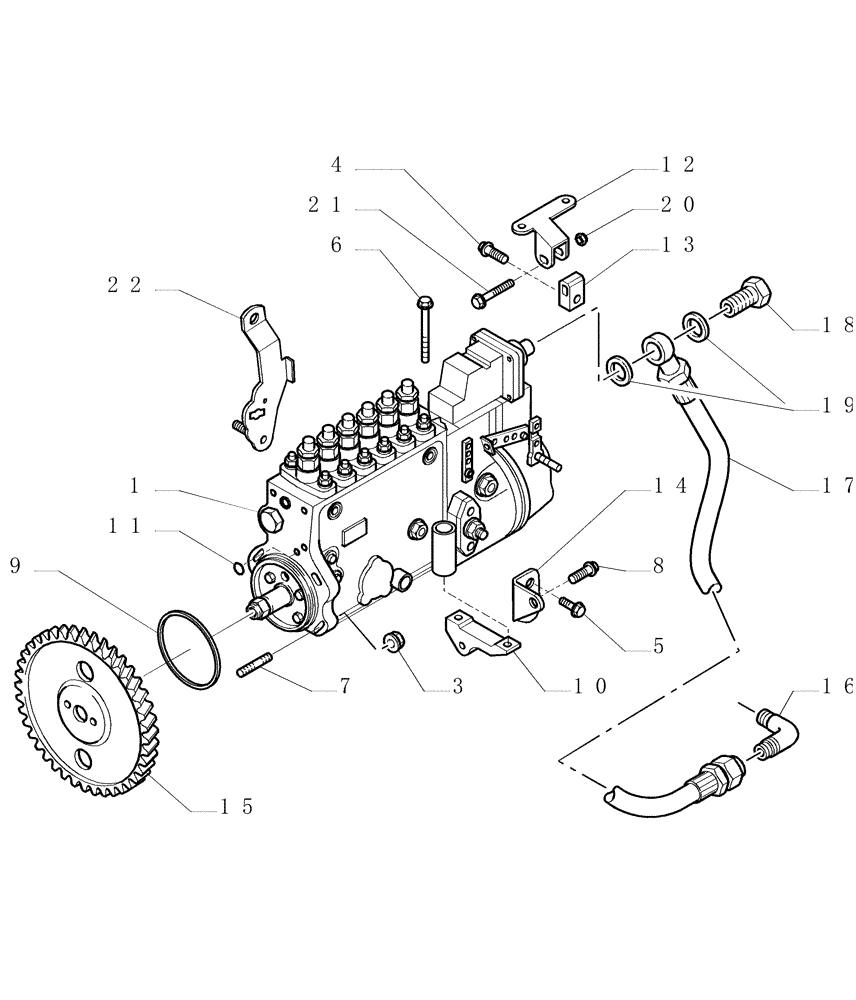

Запчасти Case 1850K (0.140[01]) - INJECTION PUMP (01) - ENGINE

1

76195164

FUEL INJECTION PUMP

(01-02-03-04), Refer to Figure 0 - VERSION(00) For Engine Version Codes

1шт.

1

76195275

FUEL INJECTION PUMP

(05), Refer to Figure 0 - VERSION(00) For Engine Version Codes

1шт.

3

75208933

NUT

M10 x 1.5

4шт.

4

75286134

BOLT

M10 x 1.50 x 40

1шт.

5

75204973

SCREW

M10 x 1.5 x 20

2шт.

6

76193373

SCREW

M8 x 1.25 x 90

2шт.

7

76195264

PROP

4шт.

8

76194652

SCREW

M10 x 1.00 x 30

1шт.

9

76194653

GASKET

1шт.

10

76194654

SUPPORT

1шт.

11

76194655

GASKET,Square, 2.51mm Thk x 6.27mm ID, -108

1шт.

12

76195160

BRACKET

1шт.

13

76195161

SUPPORT

1шт.

14

76195162

SUPPORT

1шт.

15

76194659

WHEEL ASSY

1шт.

16

76195163

ELBOW

1шт.

17

76192309

FLEXIBLE HOSE

1шт.

18

76192310

BANJO BOLT

M10 x 1 x 19

1шт.

19

76192311

O-RING

2шт.

20

76191876

NUT

M8 x 1.25

1шт.

21

75208321

SCREW

M8 x 1.25 x 45

1шт.

22

76195265

LEVER

1шт.
