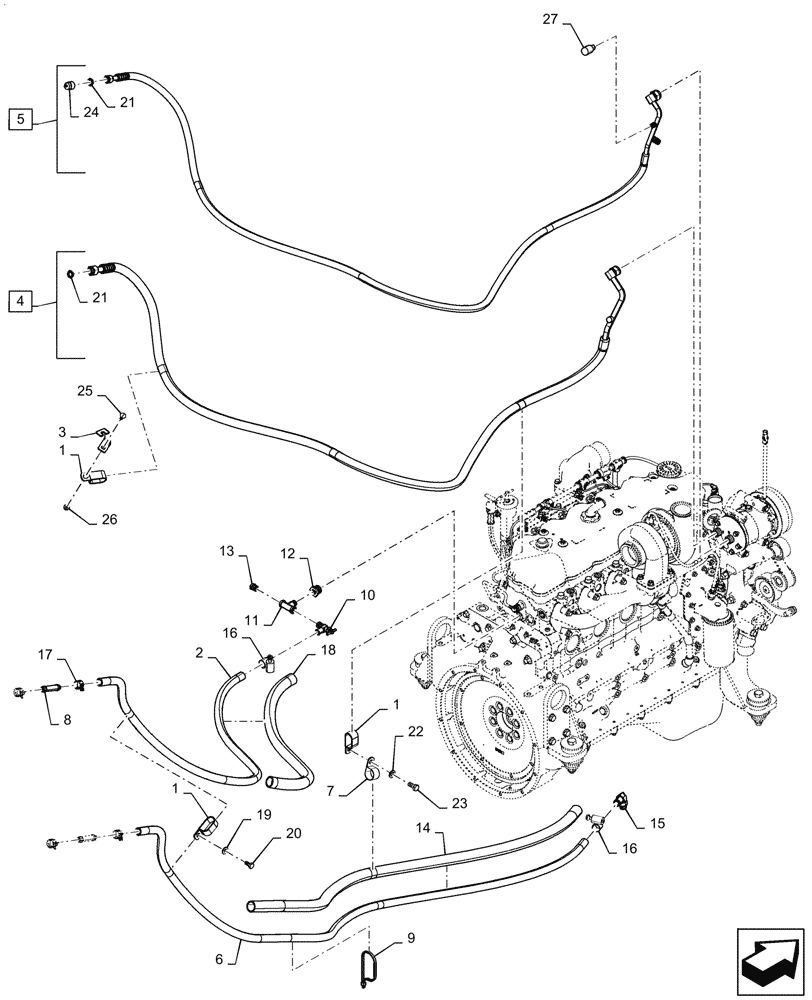

Запчасти Case 1650M XLT PAT (50.050.010) - A/C & HEATER HOSES (50) - CAB CLIMATE CONTROL

1

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

4шт.

2

84414424

HEATER HOSE

Heater Supply

1шт.

3

47927848

BRACKET

A/C Hose Mounting

1шт.

4

47876090

A/C HOSE

A/C Suction, Incl (2) Ref 21

1шт.

5

47876092

A/C HOSE

A/C Discharge, Incl (2) Ref 21 and (1) Ref 24

1шт.

6

84568732

HEATER HOSE

Heater Return

1шт.

7

87353455

CLAMP,34.9mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

8

S104739

TUBE,0.625" OD x 3" L

2шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

10

A16764

VALVE

Shut-Off

1шт.

11

217-1142

TEE,3/8"-18 Female x 3/8"-18 Male Br

1шт.

12

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

13

84561114

PLUG,3/8-18, STL PLN

1шт.

14

87325547

CONDUIT

Heater Return

2шт.

15

84559989

FITTING,1/2" TUBE TO 5/8" HOSE

1шт.

16

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

17

1954736C1

HOSE CLAMP,#24

4шт.

18

87323423

CONDUIT

Heater Supply

1шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

20

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

21

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

4шт.

22

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

23

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

24

122554A1

CAP

Discharge Hose Service, Port Incl in 5

1шт.

25

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

26

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

27

284273A2

SWITCH, A/C HIGH PRE

High Side Hose

1шт.
