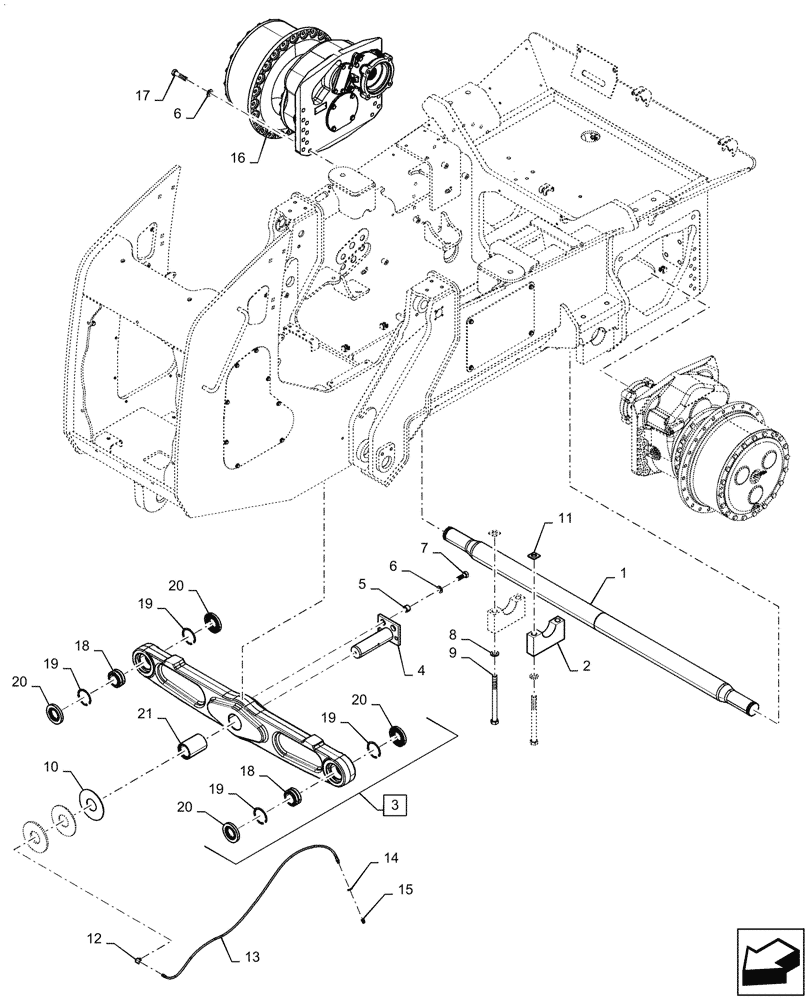

Запчасти Case 1650M XLT PAT (48.110.010) - SUSPENSION, UNDERCARRIAGE XLT (48) - TRACKS & TRACK SUSPENSION

1

47912115

SHAFT

Pivot, 76 Gauge

1шт.

2

47548945

BEARING CAP

Clamp, Pivot Shaft

4шт.

3

47751017

BEAM

Equalizer, XLT, 76 Gauge, Incl 18 - 21

1шт.

4

47721224

PIN

Center, Equalizer Beam

1шт.

5

87652972

BUSHING,20.6mm ID x 31.7mm OD 20.6mm H

Center Pin Mounting

2шт.

6

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

38шт.

7

87563127

BOLT,Hex, M20 x 50mm, Cl 10.9

2шт.

8

87016610

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

8шт.

9

47568002

BOLT,Hex, M24 x 290mm, Cl 10.9

8шт.

10

47798377

SPACER,70.4mm ID x 178mm OD x 3mm Thk

1шт.

47798378

SPACER,70.4mm ID x 178mm OD x 5mm Thk

1шт.

47798379

SPACER,70.4mm ID x 178mm OD x 10mm Thk

1шт.

11

47558732

SPACER,3mm Thk

1шт.

47558734

SPACER,4mm Thk

1шт.

47558736

SPACER,5mm Thk

1шт.

47558738

SPACER,6mm Thk

1шт.

47558742

SPACER,8mm Thk

1шт.

47558743

SPACER,9mm Thk

1шт.

12

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

13

47948448

HYDRAULIC HOSE,1430mm L

Grease, Service Line, 1430mm L

1шт.

14

76085536

NUT,1/8-27 NPSM

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

16

47887675

FINAL DRIVE

Assy, XLT Only

1шт.

17

87371130

BOLT,Hex, M20 x 80mm, Cl 10.9

2шт.

18

76041311

SPHERICAL BEARING,60mm ID x 90mm OD x 44mm W

2шт.

19

11062476

SNAP RING,M90, Int

4шт.

20

47699773

SEALING RING,57mm ID x 111mm OD x 14mm H

Equalizer Bearing

4шт.

21

47705693

BUSHING,70mm ID x 90mm OD x 125mm L

1шт.
