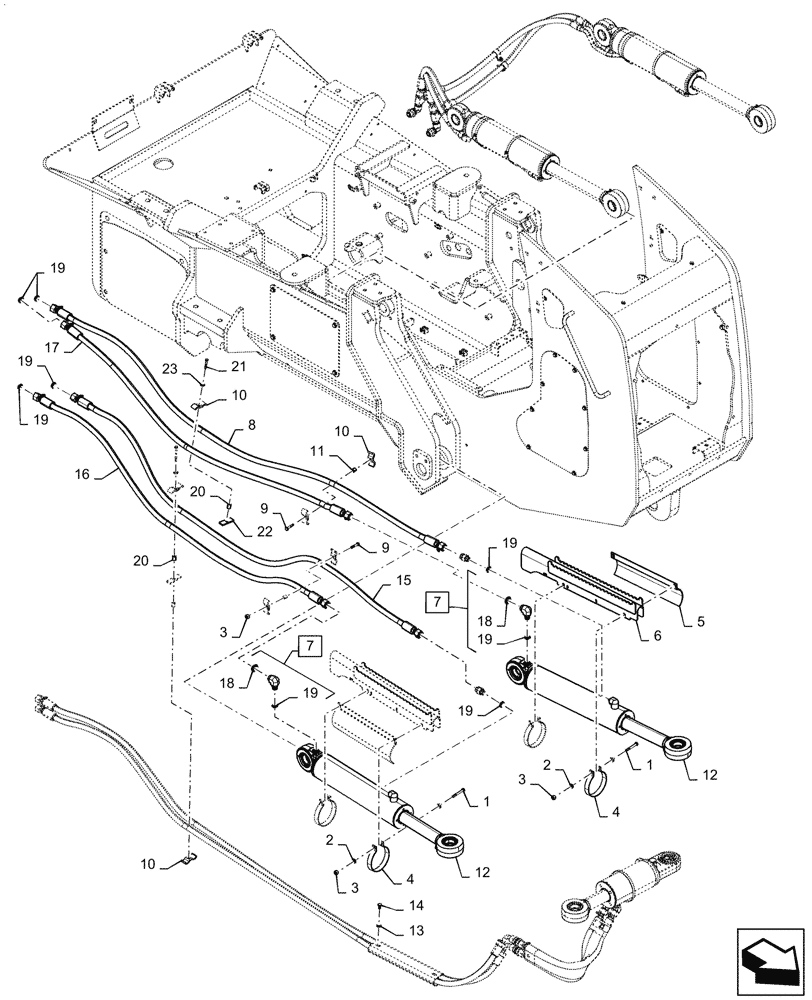

Запчасти Case 1650M XLT PAT (35.741.010[02]) - ANGLE, CYLINDER, HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

2

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

8шт.

3

412141

NUT,M10 x 1.5, Cl 8

4шт.

4

47461431

CLAMP,135mm

4шт.

5

47444465

GUARD

Angle Cylinder, Side

2шт.

6

47531943

GUARD

Angle Cylinder, Hose

2шт.

7

47739433

90 ELBOW

Incl Ref18, 19

2шт.

8

84539544

HYDRAULIC HOSE,19.05mm ID x 2860mm L, SAE 100R16

1шт.

9

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

10

434130A1

HOSE CLAMP

4шт.

11

436110A1

SPACER

2шт.

12

84402336

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 502.7mm Stroke

2шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

14

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

15

84539542

HYDRAULIC HOSE,19.05mm ID x 2740mm L, SAE 100R16

1шт.

16

84539543

HYDRAULIC HOSE,19.05mm ID x 2290mm L, SAE 100R16

1шт.

17

84539545

HYDRAULIC HOSE,19.05mm ID x 2125mm L, SAE 100R16

1шт.

18

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

19

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.

20

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

1шт.

21

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

22

47496506

PLATE

Spacer, Hose Mount

1шт.

23

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

24

47743801

HYD CONNECTOR

2шт.
