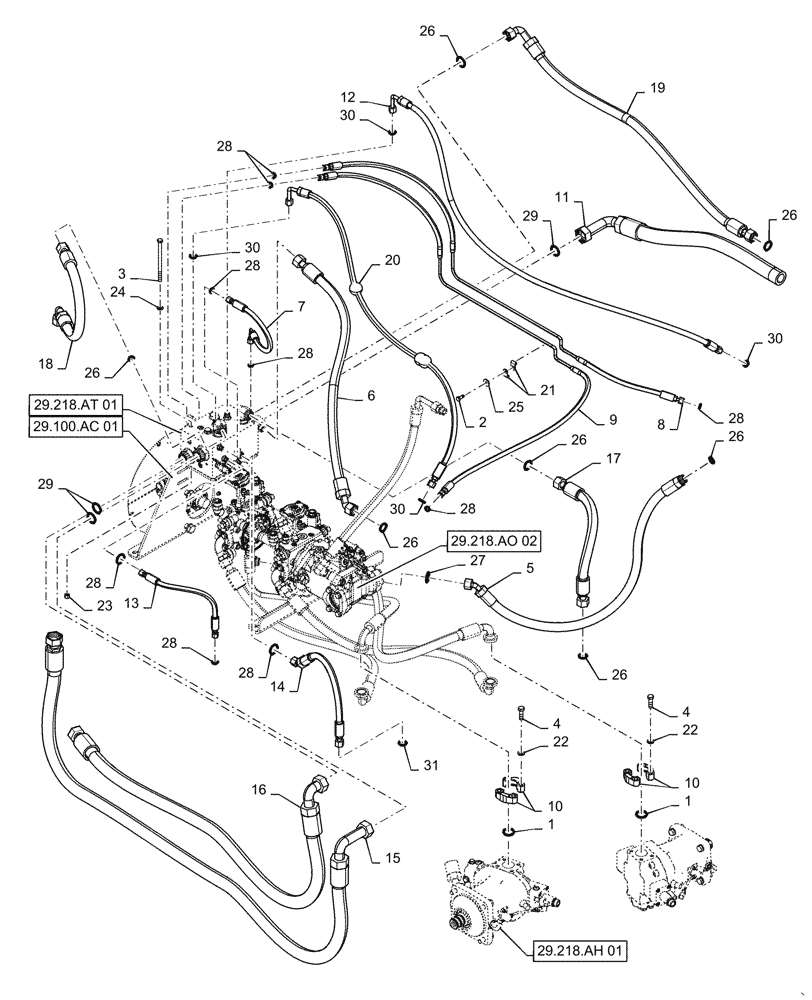

Запчасти Case 1650M XLT PAT (29.218.010) - HYDROSTATIC PUMP (29) - HYDROSTATIC DRIVE

1

238-6220

O-RING,0.139" Thk x 1.359" ID, -220, Cl 6, 90 Duro

4шт.

2

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

13шт.

3

382181

BOLT,Hex, M12 x 1.75 x 190mm, Cl 8.8

2шт.

4

11116021

SCREW,Hex, M14 x 45mm, Cl 8.8, Full Thd

16шт.

5

47426313

HYDRAULIC HOSE,25.4mm ID x 1350mm L, SAE 100R16

FE to Filter

1шт.

6

47429782

HYDRAULIC HOSE,25.4mm ID x 1174mm L, SAE 100R1

Motor to Manifold

1шт.

7

47430150

HYDRAULIC HOSE,9.53mm ID x 600mm L, SAE 100R16

Pump PS to Manifold Y2

1шт.

8

47499710

BRAKE LINE

Right Hand Brake

1шт.

9

47500411

TUBE

Left Hand Brake

1шт.

10

76044748

FLANGE

8шт.

11

84386523

HYDRAULIC HOSE,38mm ID x 1107mm L, SAE 100R4

Manifold to Tank

1шт.

12

84386529

HYDRAULIC HOSE,12.7mm ID x 1943mm L, SAE 100R16

Motor Flushing Right Hand

1шт.

13

84386538

HYDRAULIC HOSE,9.53mm ID x 524mm L, SAE 100R16

Pump PS to Manifold Y1

1шт.

14

84386539

HYDRAULIC HOSE,15.88mm ID x 624mm L, SAE 100R16

Pump G to Manifold P

1шт.

15

84498519

HYDRAULIC HOSE,38.1mm ID x 2695mm L, SAE 100R1

Cooler to Manifold

1шт.

16

84498521

HYDRAULIC HOSE,38.1mm ID x 1975mm L, SAE 100R1

Manifold to Cooler

1шт.

17

84498522

HYDRAULIC HOSE,25.4mm ID x 608mm L, SAE 100R1

Pump T1 to Manifold TP2

1шт.

18

84498524

HYDRAULIC HOSE,25.4mm ID x 758mm L, SAE 100R1

Pump T2 to Manifold TP1

1шт.

19

84498527

HYDRAULIC HOSE,25.4mm ID x 1325mm L, SAE 100R1

Motor to Manifold

1шт.

20

84554768

HYDRAULIC HOSE,12.7mm ID x 1970mm L, SAE 100R16

Motor Flushing Left Hand

1шт.

21

86639003

CLAMP,9.5mm, Coat, 11.9mm Bolt Hole, P Type

4шт.

22

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

16шт.

23

87497916

NUT

2шт.

24

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

25

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

3шт.

26

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

7шт.

27

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

29

9840589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

5шт.

30

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

31

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.
