Запчасти Case 1650M XLT PAT (10.414.010) - FAN ASSEMBLY (10) - ENGINE

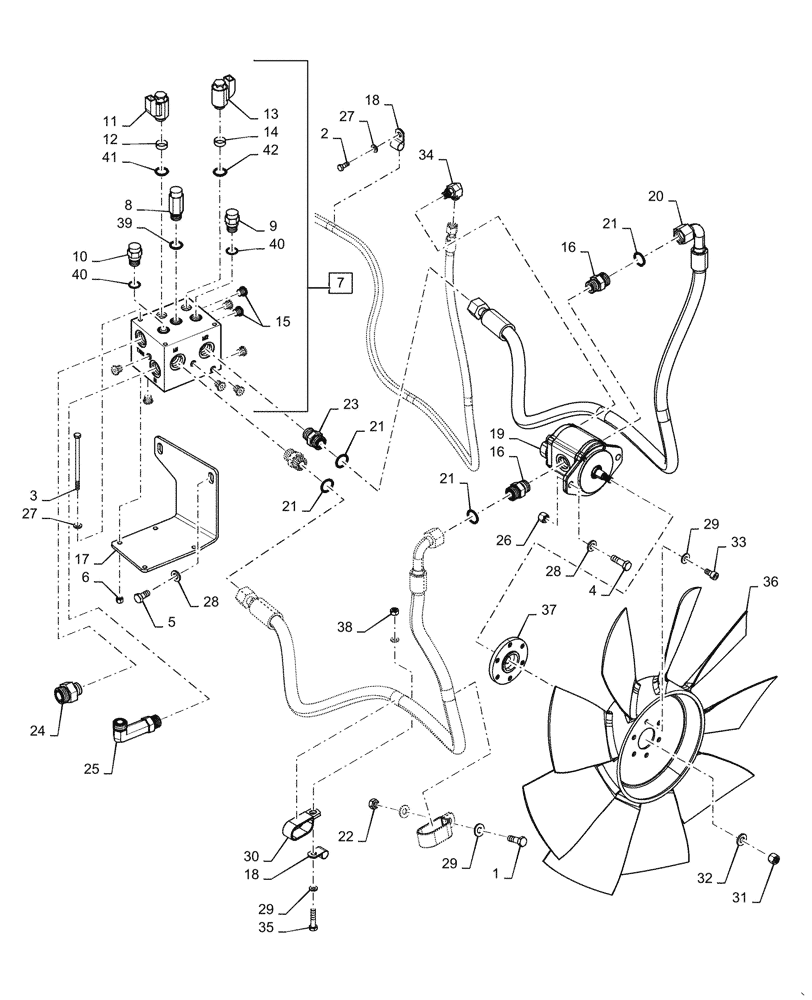

Схема запчастей Case 1650M XLT PAT - (10.414.010) - FAN ASSEMBLY (10) - ENGINE
21
9
20
33
21
41
32
21
19
8
40
14
39
16
5
6
21
18
28
30
24
22
34
36
29
18
35
7
3
40
4
11
10
38
23
17
2
25
31
29
28
42
15
26
27
13
1
37
27
16
12
29

Артикул

Название

Примечание

Количество

1

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

2

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

3

300807

BOLT,Hex, M8 x 140, 8.8

4шт.

4

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

5

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

2шт.

6

412250

NUT,M8 x 1.25, Cl 8

4шт.

7

8500565

HYDRAULIC VALVE

Fan Speed and Reverser

1шт.

8

8605053

VALVE PRESSURE RELIE

BI - Directional Relief

1шт.

9

8605056

PILOT VALVE

Piloted Directional

1шт.

10

8605059

PILOT VALVE

Piloted Directional

1шт.

11

8605062

SOLENOID VALVE

Electric Proportional

1шт.

12

87617170

COIL

1шт.

13

8605066

VALVE PRESSURE RELIE

Solenoid Cartridge

1шт.

14

87617169

COIL

1шт.

15

218-5209

PLUG,Hex, 9/16"-18 ORB

6шт.

16

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

17

47538586

MOUNT

Fan Valve

1шт.

18

47621918

CLAMP,17.5mm, Coat, 11.9mm Bolt Hole, P Type

Closed

5шт.

19

84398132

HYDRAULIC MOTOR,GEAR, 19 CC

Fan Motor 19cc

1шт.

20

84592532

HYDRAULIC HOSE,19.05mm ID x 1670mm L, SAE 100R16

Fan Motor

2шт.

21

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

22

86500689

NUT,M10 x 1.5, Cl 10

1шт.

23

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

2шт.

24

86639051

HYD CONNECTOR,1-7/16" - 12 ORFS x M27 x 2 ORB

1шт.

25

87301387

ELBOW

1шт.

26

87497916

NUT

2шт.

27

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

5шт.

28

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

29

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

10шт.

30

242999A1

CLAMP

Double Hose

2шт.

31

232-2448

NUT,1/2"-20, GC

1шт.

32

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

33

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

6шт.

34

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

35

84062222

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

1шт.

36

84385174

FAN,9 Blades, 700mm OD

Pusher 700mm Diameter

1шт.

37

84474439

HUB

Fan

1шт.

38

87030549

NUT,M10 x 1.5, Cl 10

1шт.

39

1542833C1

SEAL KIT

For BI - Directional Relief Valve

1шт.

40

388744A1

SEAL KIT

Seals For Piloted Directional Valve

2шт.

41

1542830C2

SEAL KIT

For Electric Proportional Valve

1шт.

42

87617168

SEAL KIT

For Solenoid Cartridge Valve

1шт.

Выбрано товаров: 42
