Запчасти Case 1650M XLT PAT (90.151.010) - VAR - 784365 - SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

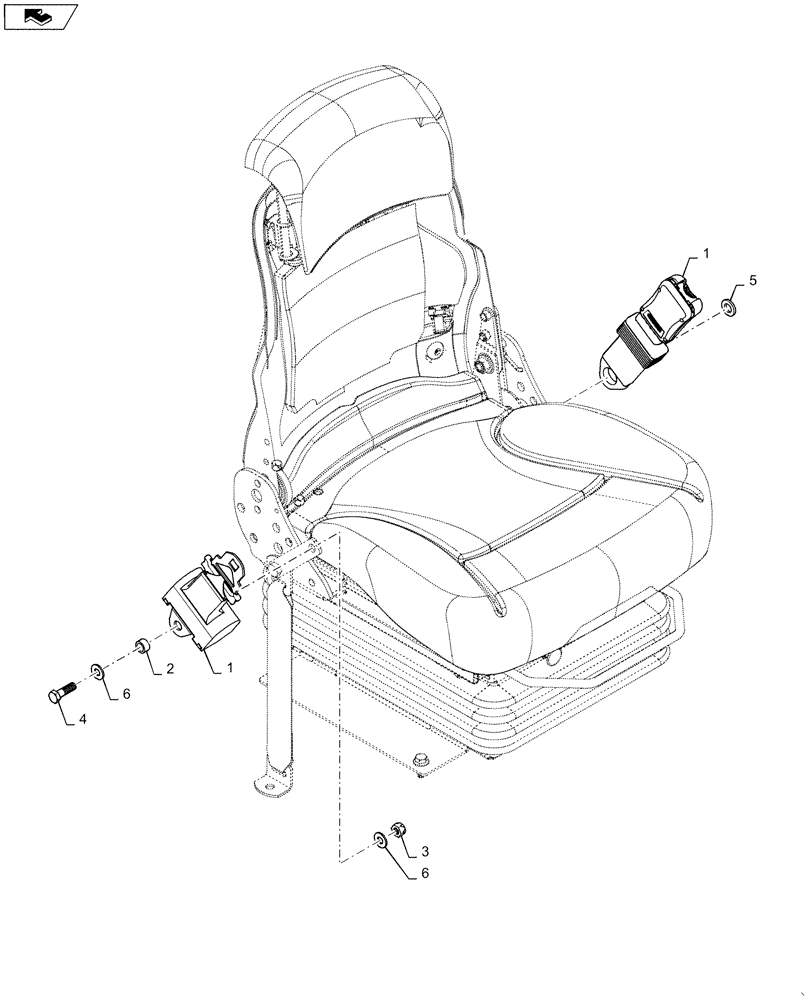

Схема запчастей Case 1650M XLT PAT - (90.151.010) - VAR - 784365 - SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
4
1
home
2
1
6
5
3

Артикул

Название

Примечание

Количество

1

84425027

SEAT BELT,50.8mm W x 1219.2mm L

2 Inch

1шт.

2

84473328

SPACER

Seat Belt Hvt

1шт.

3

86512554

NUT,M10 x 1.5, Cl 10

1шт.

4

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

1шт.

5

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12 X 13.65 X 24.9 X 3.2 Hts Boron

1шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10 X 10.65 X 23.0 X 2.2 Hts Boron

2шт.

Выбрано товаров: 6
