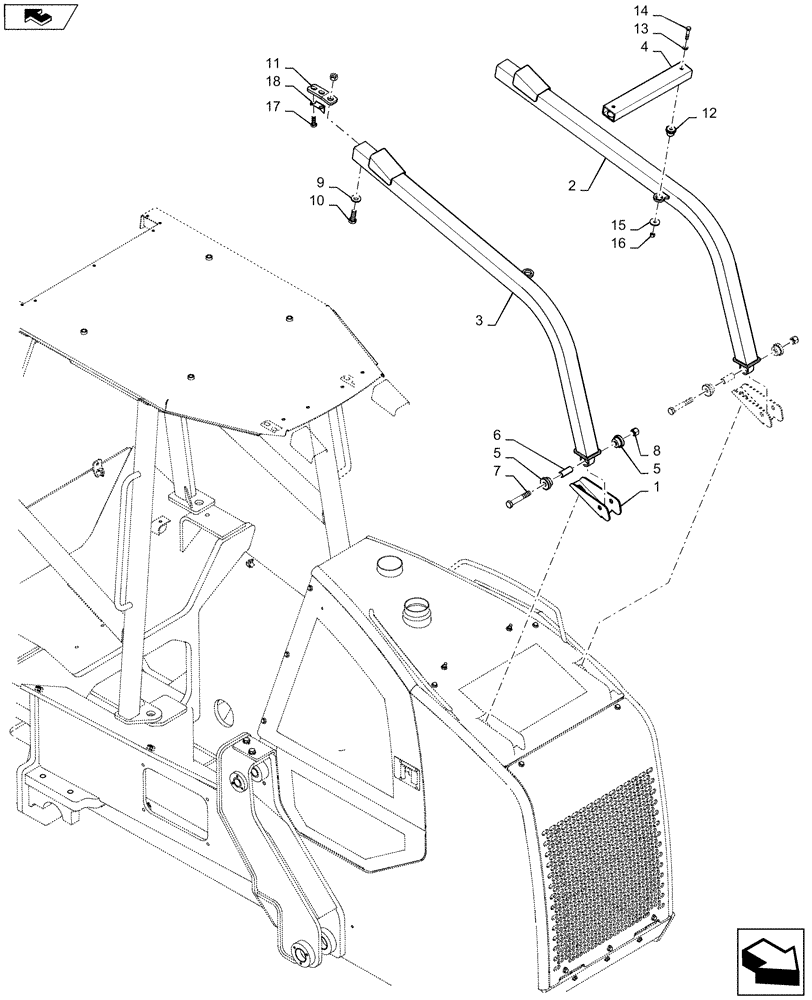

Запчасти Case 1650M XLT PAT (90.150.010) - VAR - 784702 - GUARD, BRUSH, SWEEP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84549084

CHANNEL

2шт.

2

47519291

GUARD

1шт.

3

47519289

GUARD

1шт.

4

47519293

TUBE

1шт.

5

R40721

GROMMET

4шт.

6

R40954

BUSHING

2шт.

7

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

8

832-10416

NUT,M16 x 2, Cl 8

2шт.

9

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

2шт.

10

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

2шт.

11

84390078

MOUNT

2шт.

12

R29799

SHOCK ABSORBER

2шт.

13

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

2шт.

14

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

15

D25022

WASHER

2шт.

16

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

17

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

18

47386675

MOUNTING PLATE

2шт.
