Запчасти Case 1650M XLT PAT (90.100.020) - FRONT COVER, HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

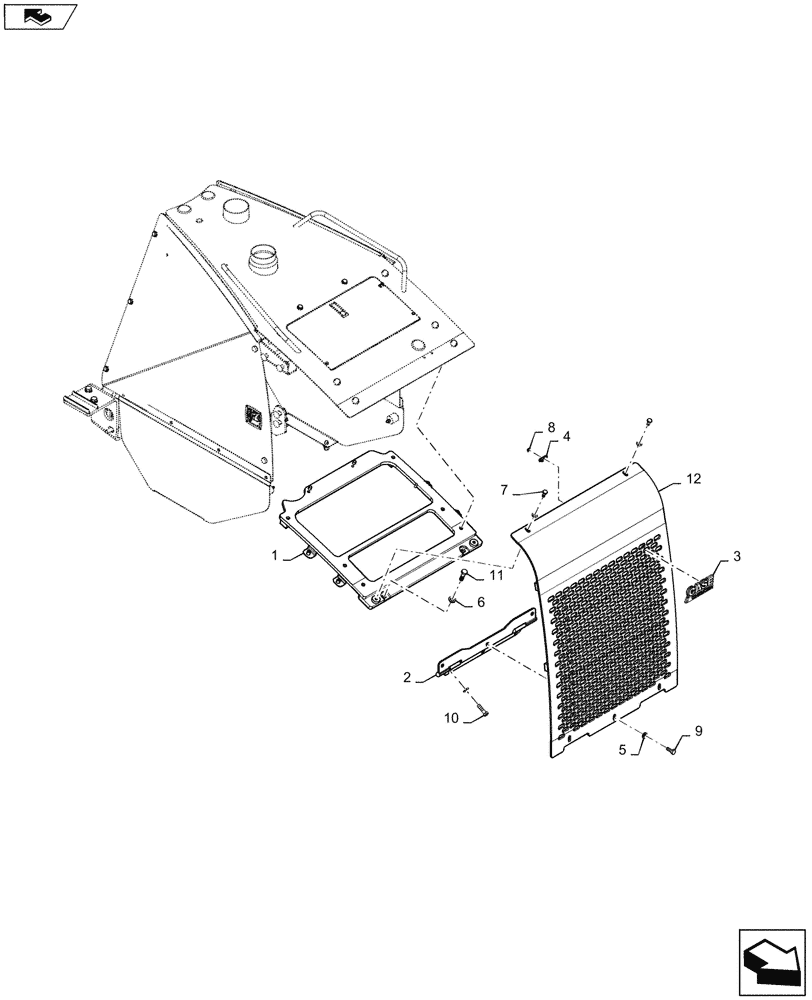

Схема запчастей Case 1650M XLT PAT - (90.100.020) - FRONT COVER, HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
home
2
1
4
12
7
9
6
10
5
11
8

Артикул

Название

Примечание

Количество

1

84583612

SUPPORT

1шт.

2

84495476

HINGE

1шт.

3

47950726

EMBLEM,102.5 mm

1шт.

4

84494357

MOUNTING PLATE

2шт.

5

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

8шт.

6

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

2шт.

7

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

2шт.

8

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

9

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

10

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

3шт.

11

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

12

47416198

GRILLE

1шт.

Выбрано товаров: 12
