Запчасти Case 1650M XLT PAT (90.100.010) - TOP COVER, HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

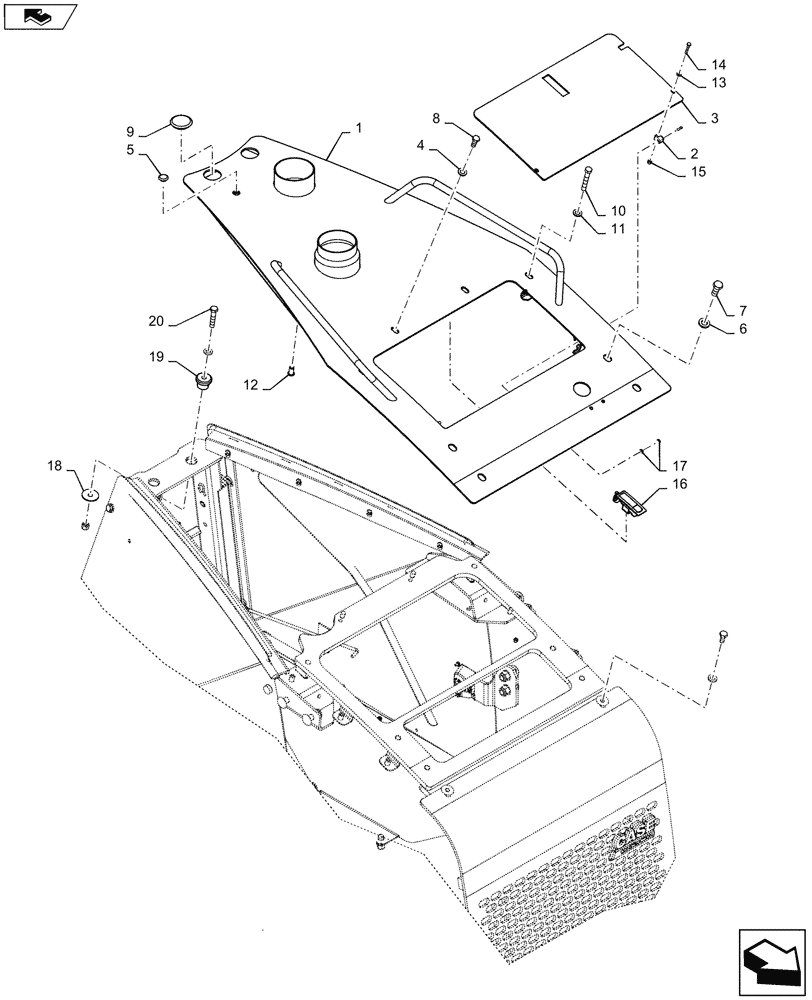

Схема запчастей Case 1650M XLT PAT - (90.100.010) - TOP COVER, HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
13
4
10
7
11
8
5
14
18
home
15
17
2
20
9
12
1
16
19
3

Артикул

Название

Примечание

Количество

1

47476572

ENGINE HOOD PANEL

1шт.

2

87440322

HINGE

2шт.

3

84583608

ACCESS COVER

1шт.

4

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

11шт.

5

14507687

PLUG,20mm ID

1шт.

6

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

4шт.

7

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

4шт.

8

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

5шт.

9

14508287

PLUG

3шт.

10

87648725

BOLT,Hex, M12 x 75mm, Cl 10.9

2шт.

11

87497918

NUT

4шт.

12

85825181

INSERT

3шт.

13

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

14

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

15

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

2шт.

16

356924A3

LATCH

1шт.

17

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

18

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

5шт.

19

R29799

SHOCK ABSORBER

2шт.

20

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

Выбрано товаров: 20
