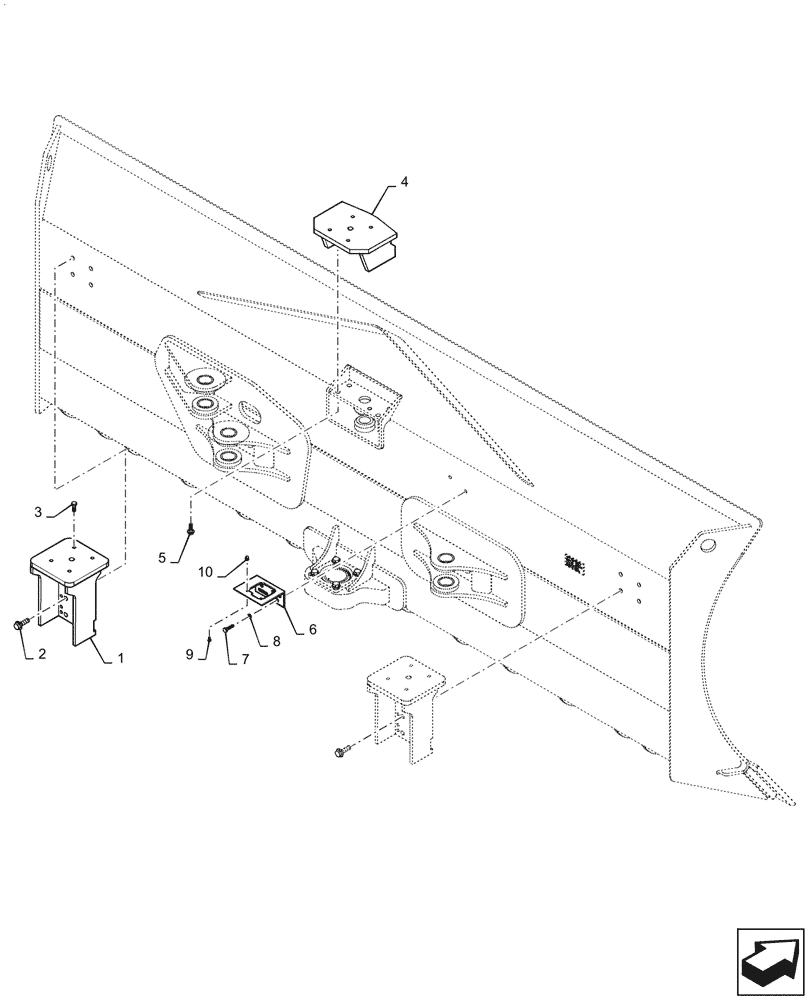

Запчасти Case 1650M XLT PAT (55.991.010[02]) - VAR - 784605 - TELEMATIC SYSTEM, PAT DOZER BLADE , MOUNTING PARTS TRIMBLE READY (55) - ELECTRICAL SYSTEMS

1

47411774

BRACKET

Side Mast

2шт.

2

87698849

BOLT,M16 x 50mm, Cl 10.9

8шт.

3

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

12шт.

4

47411775

BRACKET

Center Mast

1шт.

5

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

4шт.

6

47411778

BRACKET

Slope Sensor

1шт.

7

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

8

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

9

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

4шт.

10

87310307

CROWN NUT,Crown, 1/4"-20

4шт.
