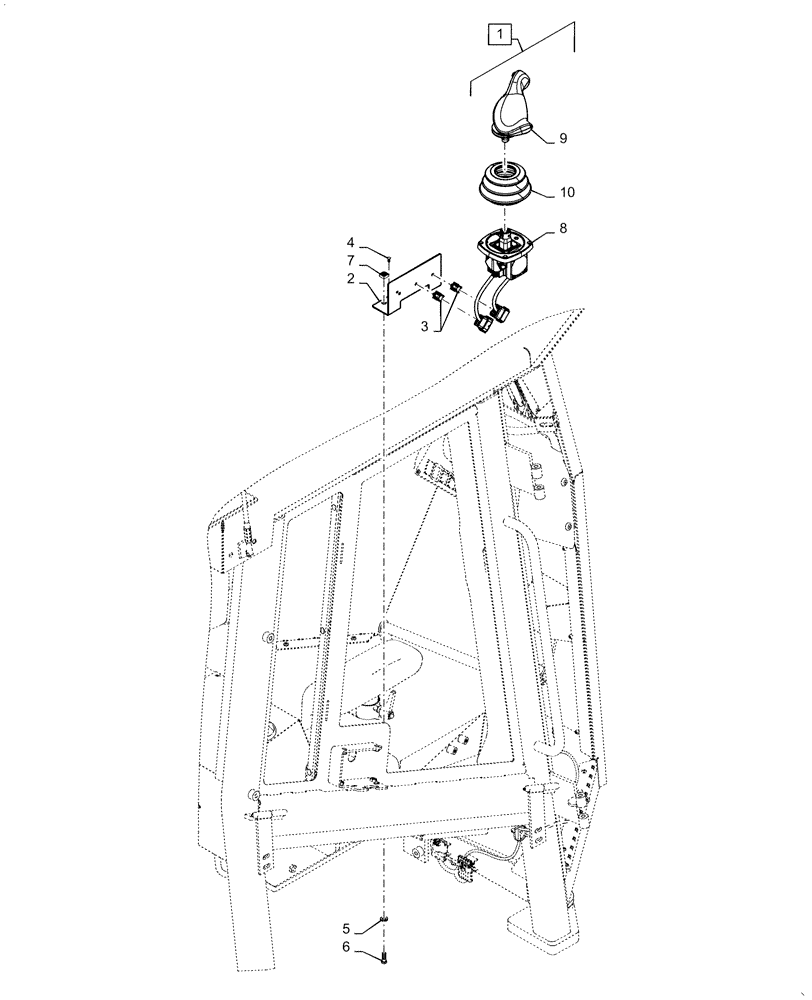

Запчасти Case 1650M XLT PAT (55.512.010) - VAR - 784350, 784607, 784668 - JOYSTICK, THUMB WHEEL PAT (55) - ELECTRICAL SYSTEMS

1

47387252

JOYSTICK

Dozer Blade Controls With Thumbwheel, Incl 8 - 10

1шт.

2

47429724

PLATE

1шт.

3

84322203

CLIP

Wire Connector, Mounting

2шт.

4

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

2шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10, 10.65 x 23.0 x 2.2

2шт.

6

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

7

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

10M - 1.5, W/Retaining CLS, Square

2шт.

8

47527312

JOYSTICK

Base Assembly, Dozer Blade Controls

1шт.

9

47408443

JOYSTICK

Grip, Dozer Blade Controls With Thumb Wheel

1шт.

10

84370045

BOOT

Joystick

1шт.
