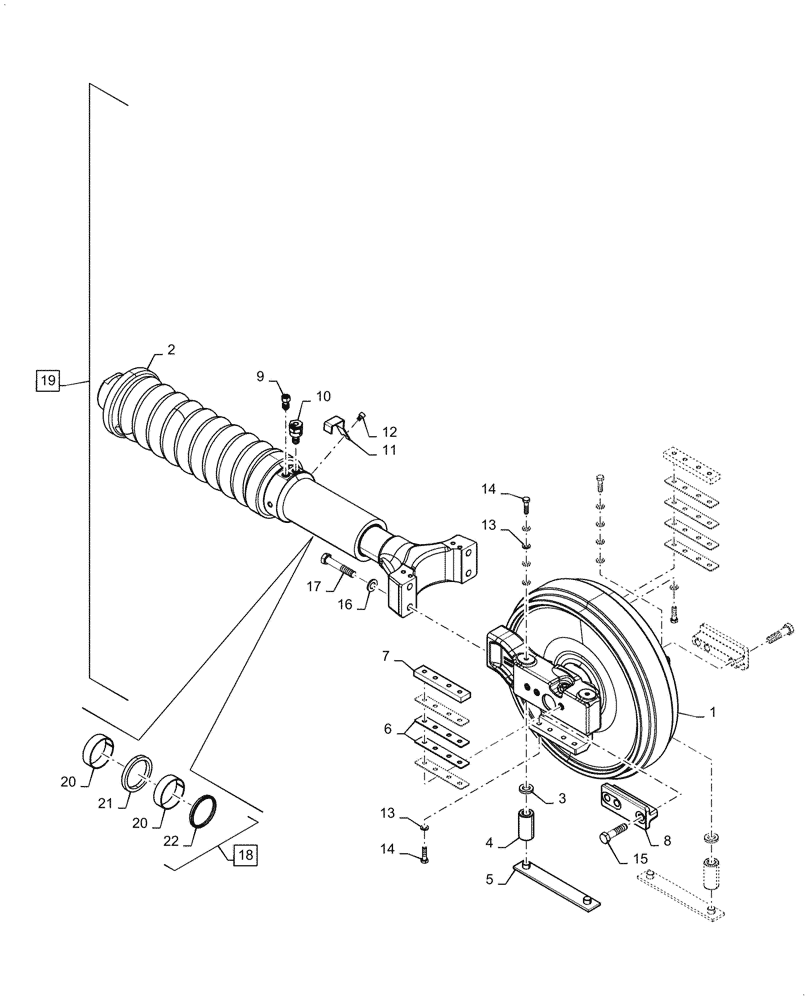

Запчасти Case 1650M XLT BD (48.138.010) - TRACK CHAIN, TENSIONER, ASSY, SALT (48) - TRACKS & TRACK SUSPENSION

1

47919329

IDLER WHEEL

SALT HD, CE Gray

1шт.

2

47919331

SPRING

Idler Recoil

1шт.

3

47919335

WASHER

4шт.

4

47919336

SPRING

Idler Support

4шт.

5

47919337

WEAR PLATE

Top

2шт.

6

47919338

SHIM

8шт.

7

48049772

WEAR PLATE

Bottom

2шт.

8

47919340

BRACKET

Idler Guide

2шт.

9

47919341

VALVE STEM

Inlet, Grease

1шт.

10

47919343

VALVE

Pressure Relief

1шт.

11

47919345

COVER

Pressure Relief Valve

1шт.

12

47919313

HEX SOC SCREW,M10 x 14mm, CL 8.8, ZND

1шт.

13

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

24шт.

14

11599531

BOLT,Hex, M12 x 45, 10.9, Full Thd

12шт.

15

11125334

BOLT,Hex, M20 x 80, 10.9

6шт.

16

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

4шт.

17

11125934

BOLT

4шт.

18

48049706

SEAL KIT

Service, Seals Bushings

1шт.

19

47892691

IDLER WHEEL

Assy, SALT HD, Incl 1 - 17

1шт.

20

NSS

NOT SOLD SEPARAT

Guide Ring, Incl in 18

2шт.

21

NSS

NOT SOLD SEPARAT

Seal Ring, Incl in 18

1шт.

22

NSS

NOT SOLD SEPARAT

Wiper, Incl in 18

1шт.
