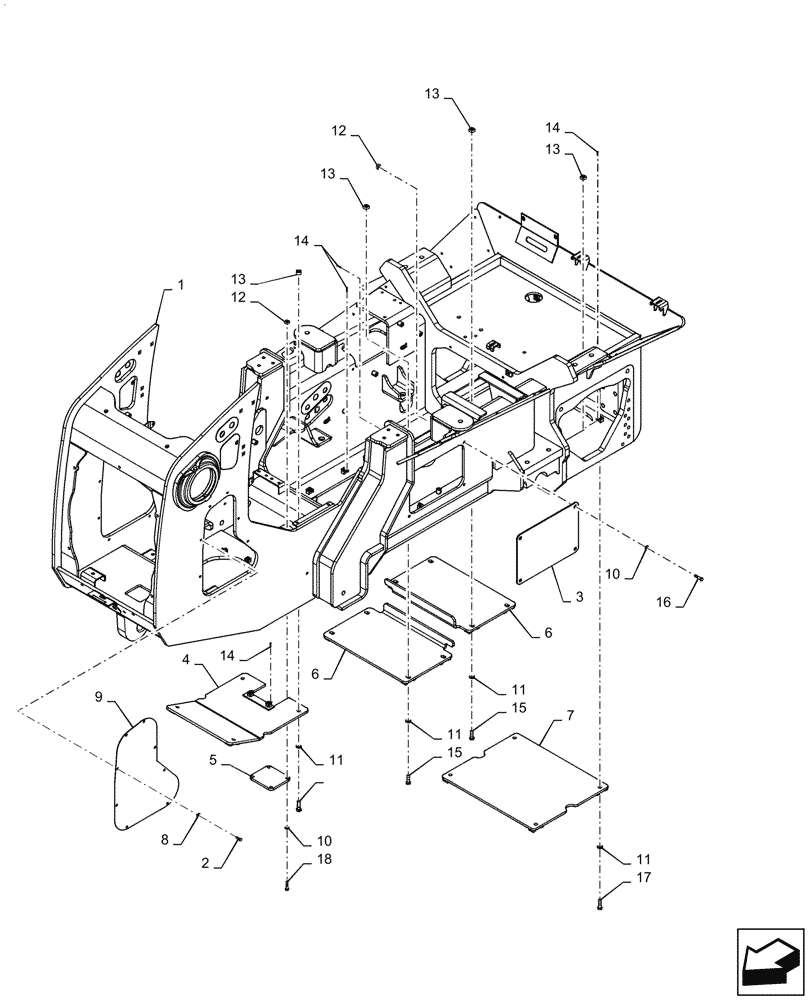

Запчасти Case 1650M XLT BD (39.100.010) - MAIN FRAME, BULL BLADE (39) - FRAMES AND BALLASTING

1

47923894

FRAME

Main, Bull Dozer, Case Power Tan

1шт.

2

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

16шт.

3

84375567

COVER

Fender, Power Tan

2шт.

4

84530204

COVER PLATE

Front Belly

1шт.

5

84375837

PLATE

Oil Drain, Cover

1шт.

6

84544923

PLATE

Rear Belly Pan

2шт.

7

84530201

COVER PLATE

Cover Belly Pan

1шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

16шт.

9

84578277

COVER

Mainframe, Forward Side Plate

2шт.

10

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

12шт.

11

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

16шт.

12

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

12шт.

13

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

16шт.

14

336371A1

PIN,4.88mm OD x 14.23mm L

28шт.

15

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

16

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

17

86837482

BOLT,Hex, M16 x 55, 10.9, Full Thd

8шт.

18

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.
