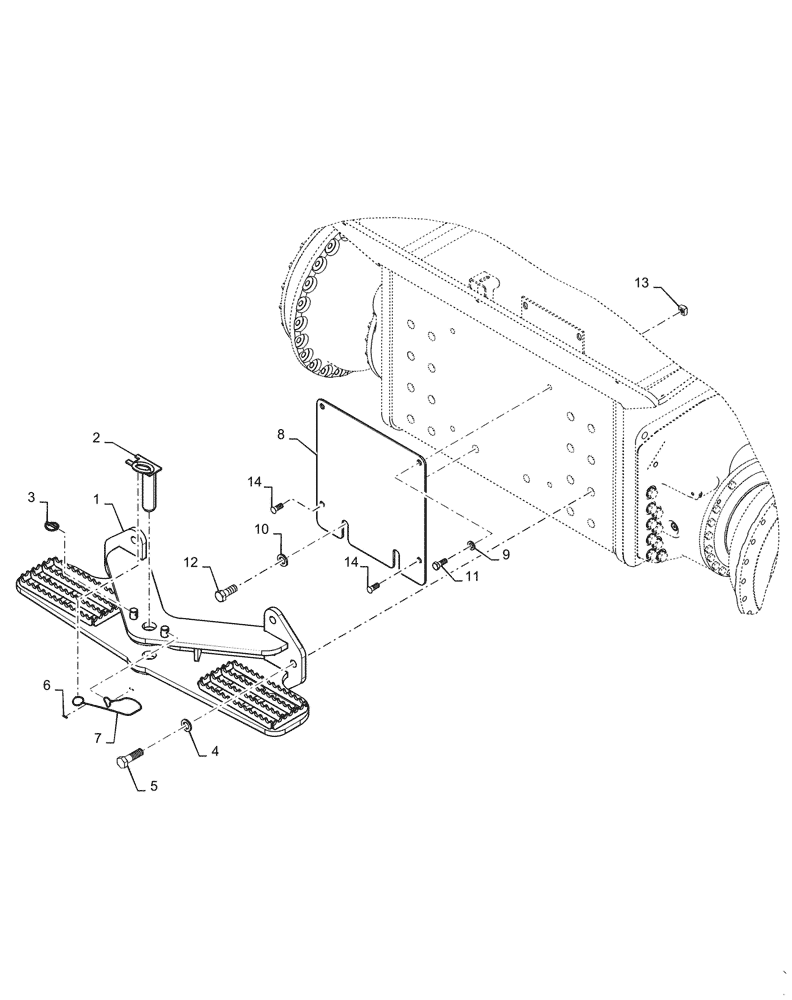

Запчасти Case 1650M XLT BD (37.100.020) - VAR - 784627 - DRAWBAR, STEP (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47496420

DRAWBAR

Step Assembly

1шт.

2

87339515

PIN

Drawbar

1шт.

3

A30338

PIN

Retaining

1шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

8шт.

5

87564731

BOLT,Hex, M24 x 80mm, Cl 10.9

8шт.

6

47496259

CABLE,405mm L

1шт.

7

47496260

SLEEVE

Lanyard

2шт.

8

48096620

Cover

PLATE

1шт.

9

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

2шт.

10

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

2шт.

11

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

12

86639036

BOLT,Hex, M24 x 60mm, Cl 10.9, Full Thd

2шт.

13

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

2шт.

14

336371A1

PIN,4.88mm OD x 14.23mm L

2шт.
