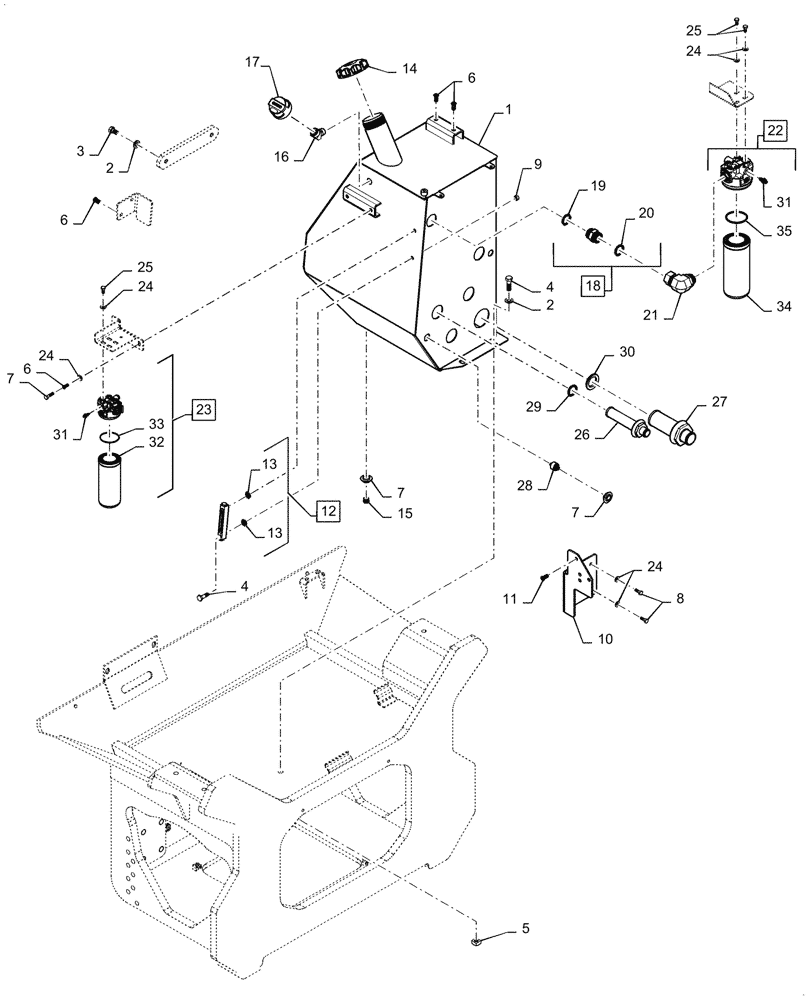

Запчасти Case 1650M XLT BD (35.300.010) - TANK - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

1

47773204

RESERVOIR, HYDRAULIC

Hyd Oil, CE Gray

1шт.

2

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

M16 x 17.75 x 31.5 x 4.2 Hts Boron

4шт.

3

86639032

BOLT,Hex, M16 x 25mm, Cl 10.9, Full Thd

2шт.

4

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

5

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

M16 x 2 Square

2шт.

6

85825181

INSERT

Threaded

2шт.

7

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

8

BER43139

BOLT

2шт.

9

829-1412

NUT,M12, Cl 10.9

2шт.

10

47379944

BRACKET

Fuel Filter Painted

1шт.

11

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

M10 x 1.5

8шт.

12

226456A1

LEVEL GAUGE

Liquid, Incl 13

1шт.

13

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

4шт.

14

84298013

CAP,128.8mm D

Hydraulic Tank

1шт.

15

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

1шт.

16

217-1088

ELBOW,45 Degree, 3/4"-14 Female x 3/4"-14 Male

1шт.

17

84339375

BREATHER

Hydraulic Tank

1шт.

18

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

Incl 19, 20

1шт.

19

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

20

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

21

84329840

90 ELBOW

ADJ-20 SWVL ORFS-20 ORB

1шт.

22

47617483

FILTER

Assembly, Implement

1шт.

23

47833558

HYDRAULIC OIL FILTER

Assembly, Charge Pump, Incl 31, 34 - 36

1шт.

24

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10 x 10.65 x 23.0 x 2.2 Hts Boron

12шт.

25

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

26

84341116

FILTER STRAINER

1.25"

2шт.

27

84201770

FILTER STRAINER

Suction, 3/38" - 12

1шт.

28

84300765

TEMPERATURE SENDER,1/2" - 14 NPTF

1шт.

29

84375830

O-RING,3mm Thk x 43.69mm ID, 70 Duro

3шт.

30

84375832

OIL SEAL,3mm Thk x 82mm ID, 70 Duro

1шт.

31

8604802

PRESSURE SWITCH

Implement Filter Head, Incl in Ref. 23 and Ref. 22

2шт.

32

47833564

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L, M87 x 2.5-6H, <4 Microns

Element, Charge Pump, Incl in Ref. 23

1шт.

33

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

Friction, Charge Pump Filter Element to Filter Head, Inlc in Ref. 23

1шт.

34

84196445

HYDRAULIC OIL FILTER

Element, Implement, Incl in Ref. 22

1шт.

35

84362145

RING

Friction, Implement Filter Elemenet to Filter Head, Incl in Ref. 22

1шт.

36

NSS

NOT SOLD SEPARAT

Filter Head, Incl in 23

1шт.
