Запчасти Case 1650M XLT BD (35.300.010) - HYDRAULIC FLUID RESERVOIR (35) - HYDRAULIC SYSTEMS

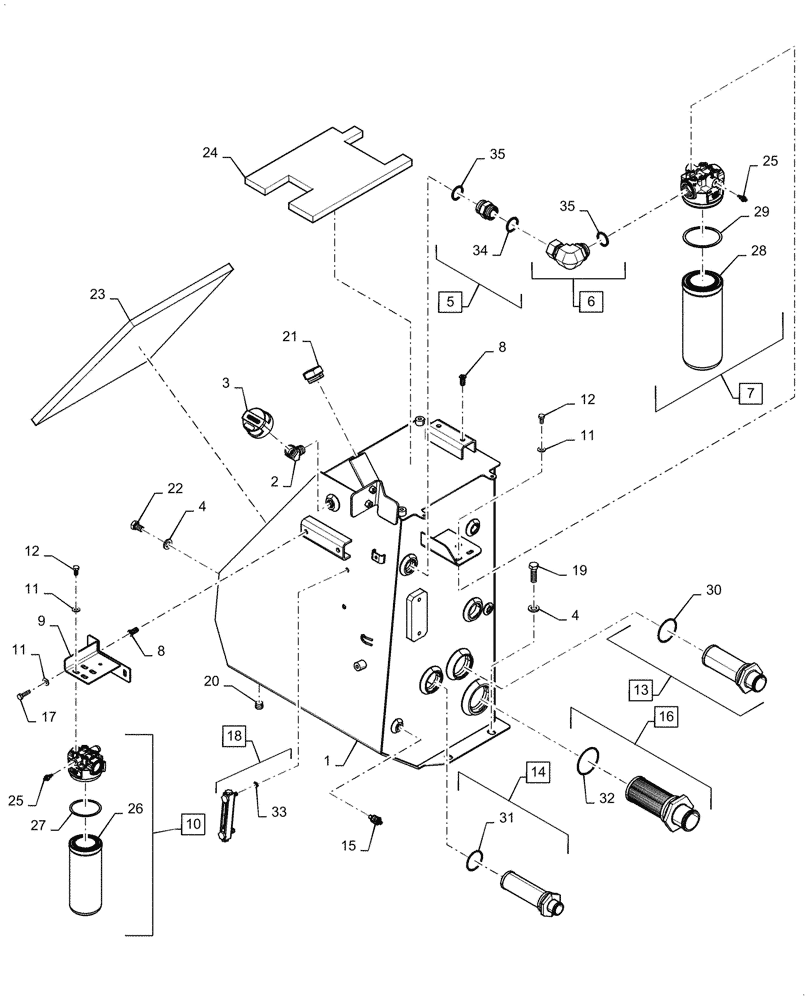

Схема запчастей Case 1650M XLT BD - (35.300.010) - HYDRAULIC FLUID RESERVOIR (35) - HYDRAULIC SYSTEMS
17
10
12
21
29
1
33
12
4
11
32
13
26
25
31
35
24
8
11
14
9
11
15
34
4
20
23
28
19
7
27
3
6
30
5
18
25
2
35
16
22
8

Артикул

Название

Примечание

Количество

1

47773231

RESERVOIR, HYDRAULIC

CE Gray

1шт.

2

217-1088

ELBOW,45 Degree, 3/4"-14 Female x 3/4"-14 Male

1шт.

3

84339375

BREATHER

Reaservoir, Vent

1шт.

4

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

4шт.

5

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

Incl 34, 35

1шт.

6

84329840

90 ELBOW

Incl 35

1шт.

7

47617483

FILTER

Assy, Hyd Oil, Implement, Incl 25, 28, 29

1шт.

8

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

4шт.

9

84412239

BRACKET

Plate, FiIlter

1шт.

10

47833558

HYDRAULIC OIL FILTER

Assy, Charge, Incl 25 - 27

1шт.

11

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

10шт.

12

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

13

84341113

FILTER STRAINER

2 Inch, Incl 30

1шт.

14

84329266

FILTER STRAINER,1.5"

1.5 Inch, Incl 31

1шт.

15

84300765

TEMPERATURE SENDER,1/2" - 14 NPTF

1шт.

16

47456162

FILTER STRAINER

Hyd Oil, Incl 32

1шт.

17

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

18

226456A1

LEVEL GAUGE

Liquid, Hyd Reservoir, Incl 33

1шт.

19

86639032

BOLT,Hex, M16 x 25mm, Cl 10.9, Full Thd

2шт.

20

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

1шт.

21

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

1шт.

22

11118931

BOLT,Hex, M16 x 50, 10.9

2шт.

23

47620324

PANEL

Lower, Foam

1шт.

24

47862512

FOAM

Upper, Panel

1шт.

25

8604802

PRESSURE SWITCH

Charge Filter, Indicator

2шт.

26

47833564

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L, M87 x 2.5-6H, <4 Microns

Spin On Element, Charge

1шт.

27

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

Charge Filter

1шт.

28

84196445

HYDRAULIC OIL FILTER

Spin on Element, Implement

1шт.

29

84362145

RING

Implement Filter

1шт.

30

84375832

OIL SEAL,3mm Thk x 82mm ID, 70 Duro

Strainer, 2 Inch

1шт.

31

84375831

OIL SEAL,3mm Thk x 59mm ID, 70 Duro

Strainer, 1.5 Inch

1шт.

32

47456335

OIL SEAL,3mm Thk x 82mm ID, 70 Duro

Strainer Filter

1шт.

33

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

Level Guage

1шт.

34

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

ORFS

1шт.

35

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

ORB

2шт.

Выбрано товаров: 35
