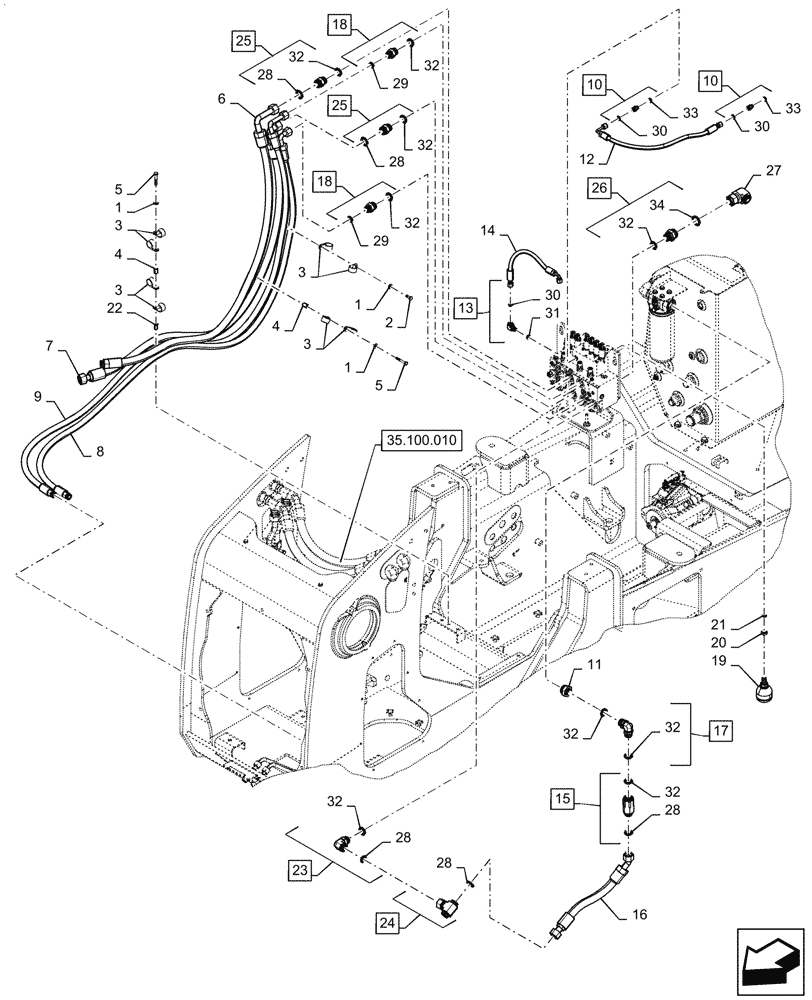

Запчасти Case 1650M XLT BD (35.100.020) - HYDRAULIC LIFT, HOSES, HYD. TUBES (35) - HYDRAULIC SYSTEMS

1

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

2

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

3

86639002

CLAMP,34.9mm, Coat, 11.9mm Bolt Hole, P Type

8шт.

4

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

2шт.

5

120114

SCREW

2шт.

6

84590354

HYDRAULIC HOSE,25.4mm ID x 1963mm L, SAE 100R16

Lift Port, B2,

1шт.

7

84590357

HYDRAULIC HOSE,25.4mm ID x 2045mm L, SAE 100R16

Lift Port, A2,

1шт.

8

84590419

HYDRAULIC HOSE,25.4mm ID x 3090mm L, SAE 100R16

Tilt Port, A1

1шт.

9

84590416

HYDRAULIC HOSE,25.4mm ID x 3105mm L, SAE 100R16

Tilt Port, B1

1шт.

10

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 30, 33

2шт.

11

47544518

REDUCER

1шт.

12

47923035

HYDRAULIC HOSE

1шт.

13

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Incl, 30, 31

1шт.

14

84384021

HOSE ASSY.,9.53mm ID x 441mm L, SAE 100R16

1шт.

15

84377913

CHECK VALVE

Incl Ref 28,32

1шт.

16

47544247

HYDRAULIC HOSE

1шт.

17

47544528

ELBOW UNION,-16, 90 Degree Adj, 1 5/16"-12 Male x 1 5/16"-12, Male, ORB

Incl (2) Ref 32

1шт.

18

47739429

HYD CONNECTOR,1 - 5/16 - 12 ORB 1 - 3/16 - 12 ORFS

Incl Ref 29, 32

2шт.

19

47705838

ACCUMULATOR

With Gas Valve

1шт.

20

87010704

BHD LOCK NUT,11/16"-16

1шт.

21

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

22

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

1шт.

23

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

1шт.

24

47462695

TEE

1шт.

25

47743834

HYD CONNECTOR

2шт.

26

85802801

HYD CONNECTOR,1-11/16-12 ORFS x 1-5/16-12 ORB

Incl Ref 32, 34

1шт.

27

84989414

NIPPLE

1шт.

28

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

6шт.

29

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

30

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

5шт.

33

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

34

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.
