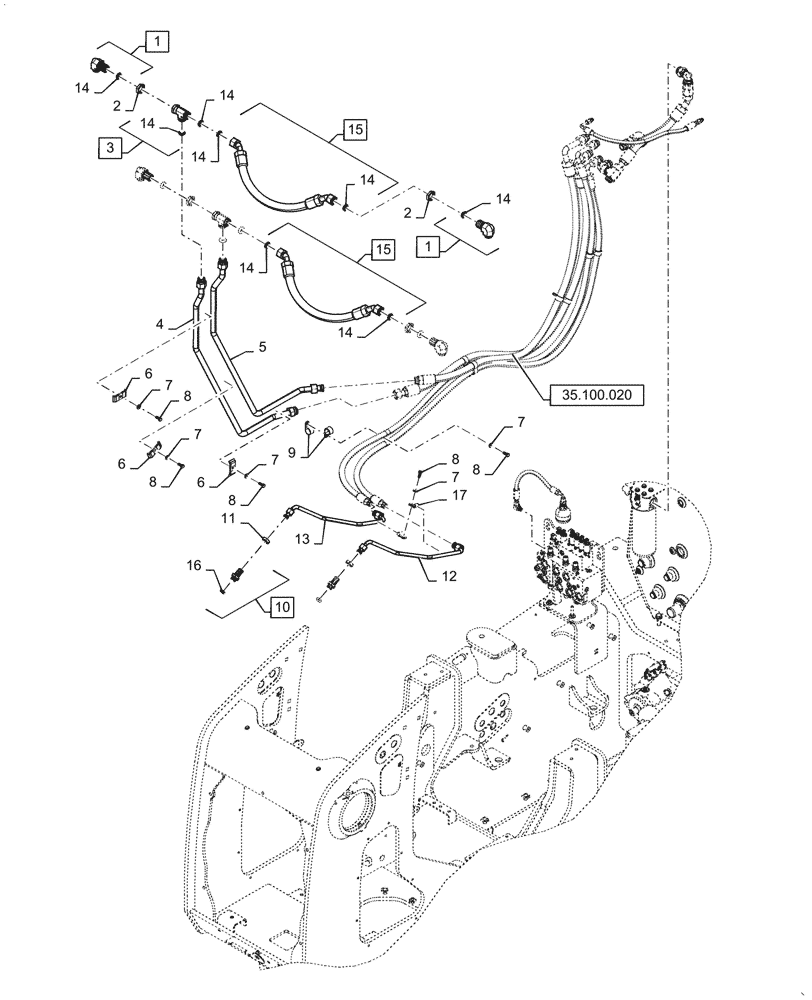

Запчасти Case 1650M XLT BD (35.100.010) - HYDRAULIC LIFT (35) - HYDRAULIC SYSTEMS

1

201-363

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl Ref 14

4шт.

2

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

4шт.

3

47743799

UNION TEE,1 - 17/16" Swivel Run ORFS

Incl (2) Ref14

2шт.

4

47467152

TUBE ASSY.,23mm ID x 25.4mm OD x 1562mm L

1шт.

5

47467154

TUBE ASSY.,23mm ID x 25.4mm OD x 1625mm L

1шт.

6

L15315

CLAMP

Tube

3шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

5шт.

8

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

5шт.

9

86639002

CLAMP,34.9mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

10

701-123

UNION,1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl Ref 16

2шт.

11

86639085

BHD LOCK NUT,1"-14, Bulkhead

2шт.

12

84394706

TUBE,13.4mm ID x 15.8mm OD x 790mm L

Front Port

1шт.

13

84404743

TUBE

Front Port

1шт.

14

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

12шт.

15

47475866

HOSE ASSY.,25.4mm ID x 783mm L, SAE 100R12

Incl (2) Ref 14

2шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

17

86639005

CLAMP,15.9mm, Coat, 13.5mm Bolt Hole, P Type

2шт.
