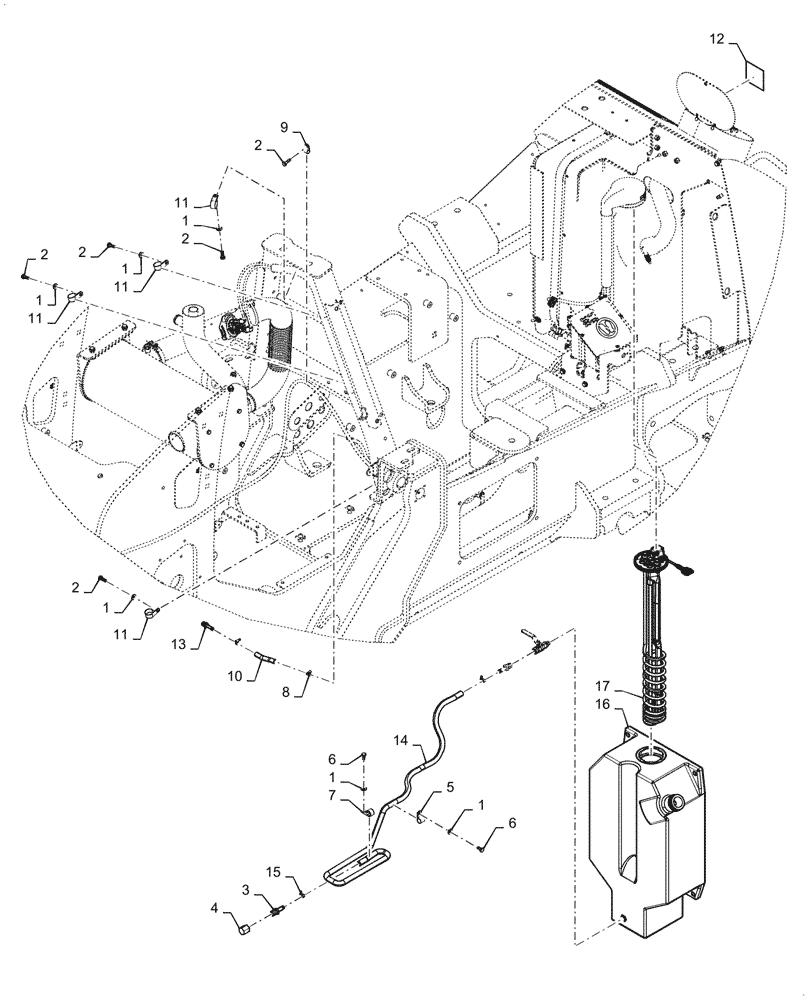

Запчасти Case 1650M XLT BD (10.500.020) - VAR - 784818 - DEF/ADBLUE™ LINES (10) - ENGINE

1

87713132

SPECIAL WASHER,10.7mm ID x 23mm OD x 2.2mm Thk

6шт.

2

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

5шт.

3

84422999

FITTING,M12, 1/2 - 14, 66mm L, SS

1шт.

4

84423014

CAP,1/2" - 14

1шт.

5

87530629

CLAMP,20.6mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

7

87032428

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

8

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

6шт.

9

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

10

84527816

HOSE,9.5mm ID x 100mm L

1шт.

11

87573373

CLAMP,33.3mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

12

84284896

DECAL,DEF TANK identification label

1шт.

13

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

1шт.

14

47508268

HOSE,12.7mm ID x 1776mm L, SAE 20R3

1шт.

15

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

1шт.

16

47672724

EXHAUST FLUID TANK

Tank

1шт.

17

47931675

SENSOR,806mm L, 24V

1шт.
