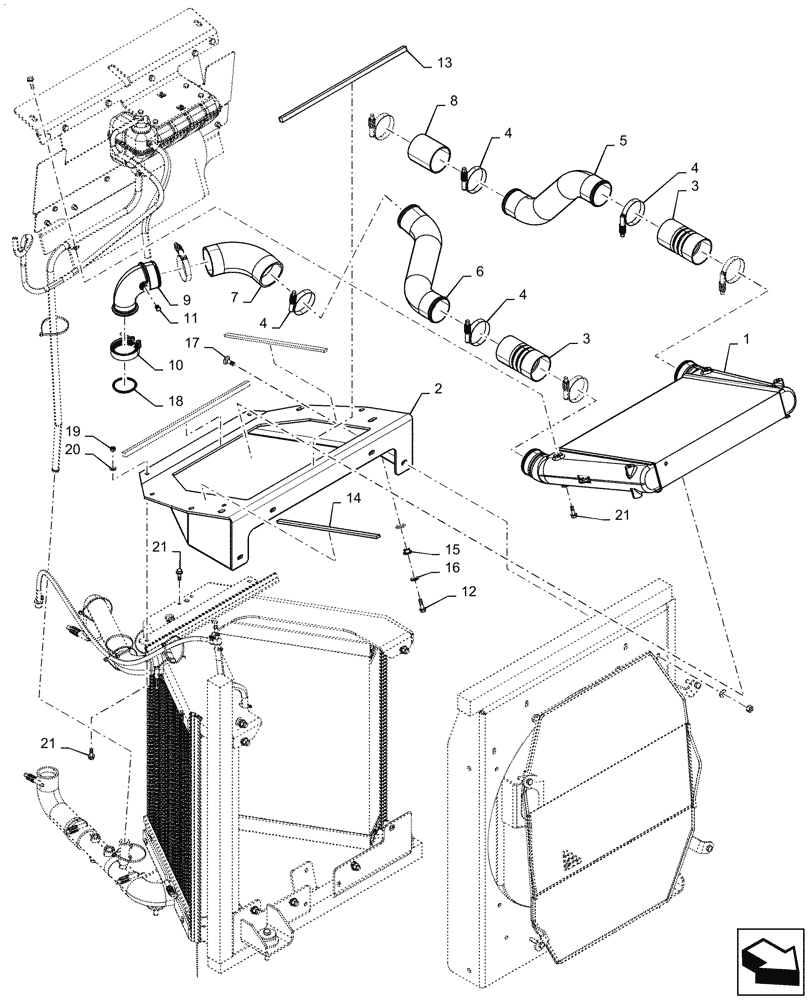

Запчасти Case 1650M XLT BD (10.400.030) - AFTERCOOLER, HOSE ASSY., MOUNTING PARTS (10) - ENGINE

1

84376173

AFTERCOOLER

Charge Air

1шт.

2

84540635

FRAME

Charge Air Aftercooler, Mounting

1шт.

3

87340284

INTAKE AIR HOSE,76.20mm ID x 129mm L

2шт.

4

L115549

CLAMP,69.85mm - 92.08mm

8шт.

5

84487552

RIGID TUBE

Charge Air

1шт.

6

84570287

AIR INTAKE TUBE

Charge Air

1шт.

7

84570290

INTAKE AIR HOSE,76.2mm ID x 221.7mm L

1шт.

8

87572375

HOSE,76.2mm ID x 89mm L

1шт.

9

J918685

PIPE

Charge Air

1шт.

10

J069053

CLAMP,66.54mm ID

1шт.

11

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1шт.

12

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

13

84382949

SEALING STRIP,12mm W x 500mm L x 12mm Thk

2шт.

14

84382950

SEALING STRIP,12mm W x 420mm L x 6mm Thk

2шт.

15

84316339

HUB,10mm ID x 23mm OD x 10.8mm L

2шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

17

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

4шт.

18

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

19

825-1406

NUT,M6, Cl 8

2шт.

20

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

21

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.
