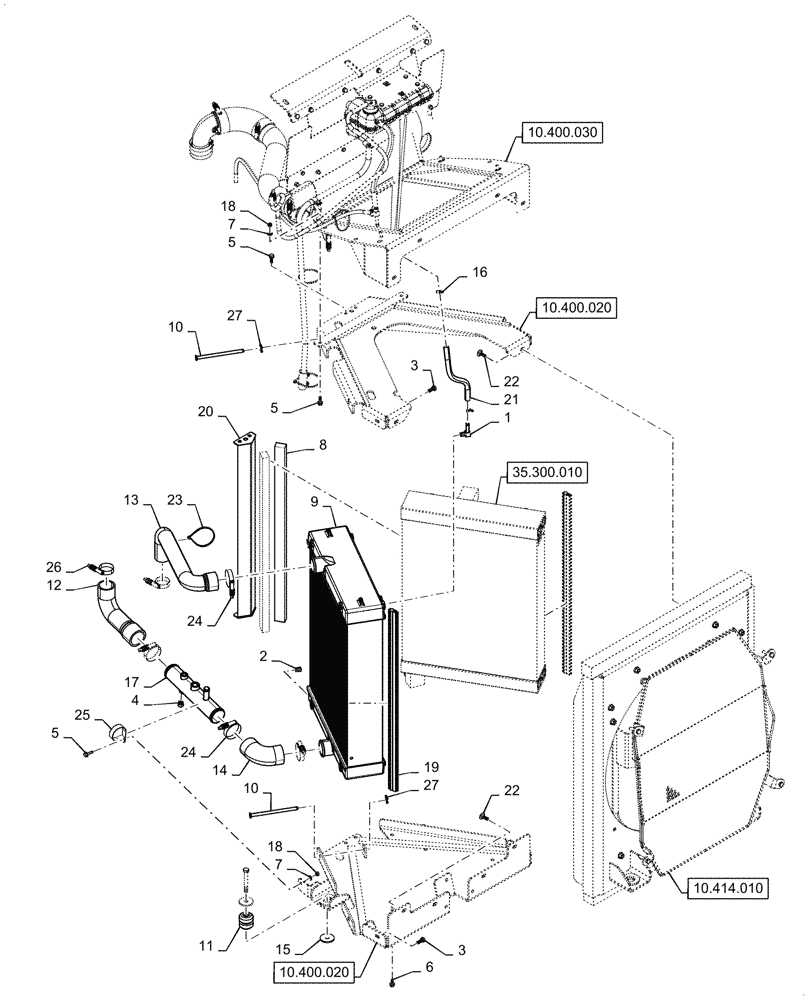

Запчасти Case 1650M XLT BD (10.400.010) - RADIATOR, MOUNTING, COOLING SYSTEM LINE (10) - ENGINE

1

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

2

217-86

PLUG,Hex Hd, 1/4"-18, Brass

1шт.

3

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

4

76349

PLUG,9/16" - 18 ORB

1шт.

5

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

7

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

8

47426880

SEAL

Foam, Rear Support

2шт.

9

84262310

RADIATOR

5-Row

1шт.

10

84269372

PIN,9.65mm OD x 177.75mm L

Radiator Mounting

4шт.

11

84540649

ISOLATOR,50mm OD x 50mm L

2шт.

12

84487403

HOSE

Radiator, To Engine

1шт.

13

84487900

HOSE

Upper, From Engine to Radiator

1шт.

14

84487901

HOSE

Lower, Radiator

1шт.

15

86625245

WASHER,0.52" ID x 2" OD x 0.16" Thk

4шт.

16

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

17

84540650

TUBE

Lower Radiator to Engine

1шт.

18

825-1408

NUT,M8, Cl 8

2шт.

19

84540657

RUBBER WEATHERSTRIP,17mm W x 790mm L x 35mm H

Radiator Seal

1шт.

20

84542663

SUPPORT

Radiator, Side-Mounting

1шт.

21

84570288

RADIATOR HOSE,7.92mm ID x 327mm L

Upper, to Degas Tank

1шт.

22

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

6шт.

23

86566990

CABLE TIE,292mm OAL x 4.8mm W

2шт.

24

76086811

HOSE CLAMP,57mm - 79mm, Worm Clamp

4шт.

25

87573379

CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

26

254026A1

HOSE CLAMP,44.45mm - 66.67mm

2шт.

27

87700737

CLIP

Radiator Mounting

4шт.
