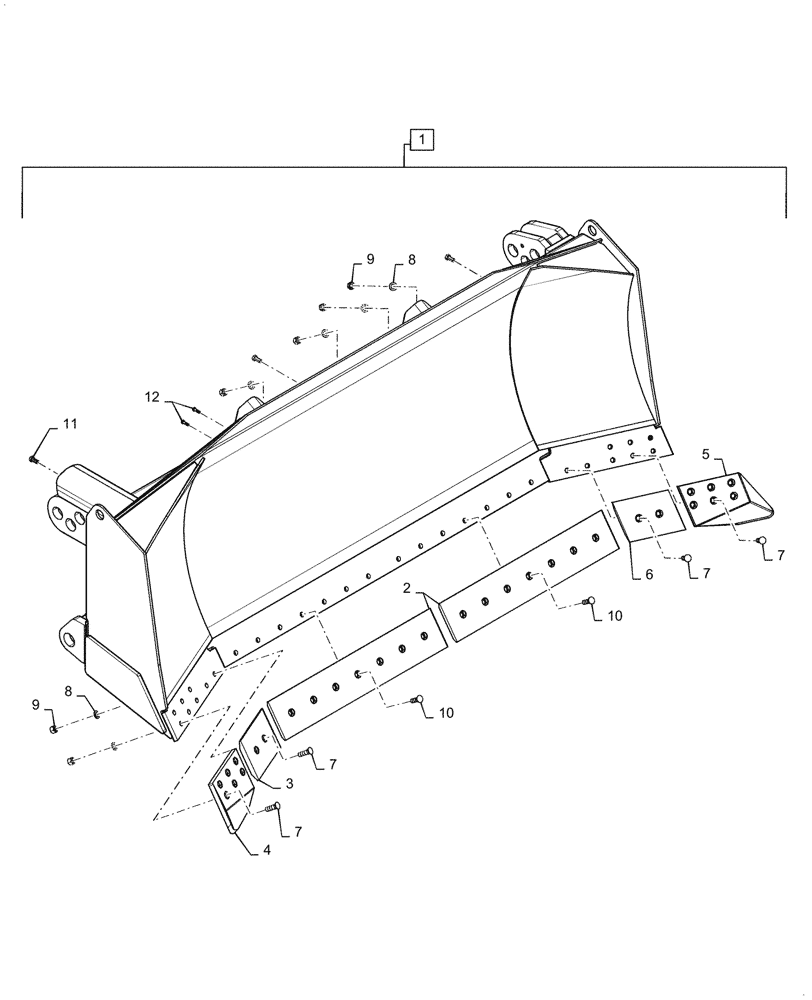

Запчасти Case 1650M XLT BD (86.110.010) - VAR - 784614 - BULL BLADE HSU (86) - DOZER

1

47810567

DOZER BLADE

Semi-U, Incl 2 - 12

1шт.

2

47608929

CUTTING EDGE

Central

2шт.

3

84121491

CUTTING EDGE,326.8 OAL / 200MM WIDE

1шт.

4

84121492

CUTTING EDGE,301.5 OAL / 235MM WIDE

1шт.

5

84121493

CUTTING EDGE,301.5 OAL / 235MM WIDE

1шт.

6

84121494

CUTTING EDGE,326.8 MM OAL / 200MM WIDE

1шт.

7

8282270

PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9

16шт.

8

895-11020

WASHER,M20 x 37 x 3

30шт.

9

86015195

NUT,M20 x 1.5, Cl 10

30шт.

10

8273211

PLOW BOLT,Plow, M20 x 1.5 x 62mm, Cl 10.9

14шт.

11

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

12шт.

12

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.
