(55.991.010[03]) - VAR - 784605 - TELEMATIC SYSTEM, BULL BLADE, MOUNTING PARTS, TRIMBLE READY

Запчасти Case 1650M XLT BD (55.991.010[03]) - VAR - 784605 - TELEMATIC SYSTEM, BULL BLADE, MOUNTING PARTS, TRIMBLE READY (55) - ELECTRICAL SYSTEMS

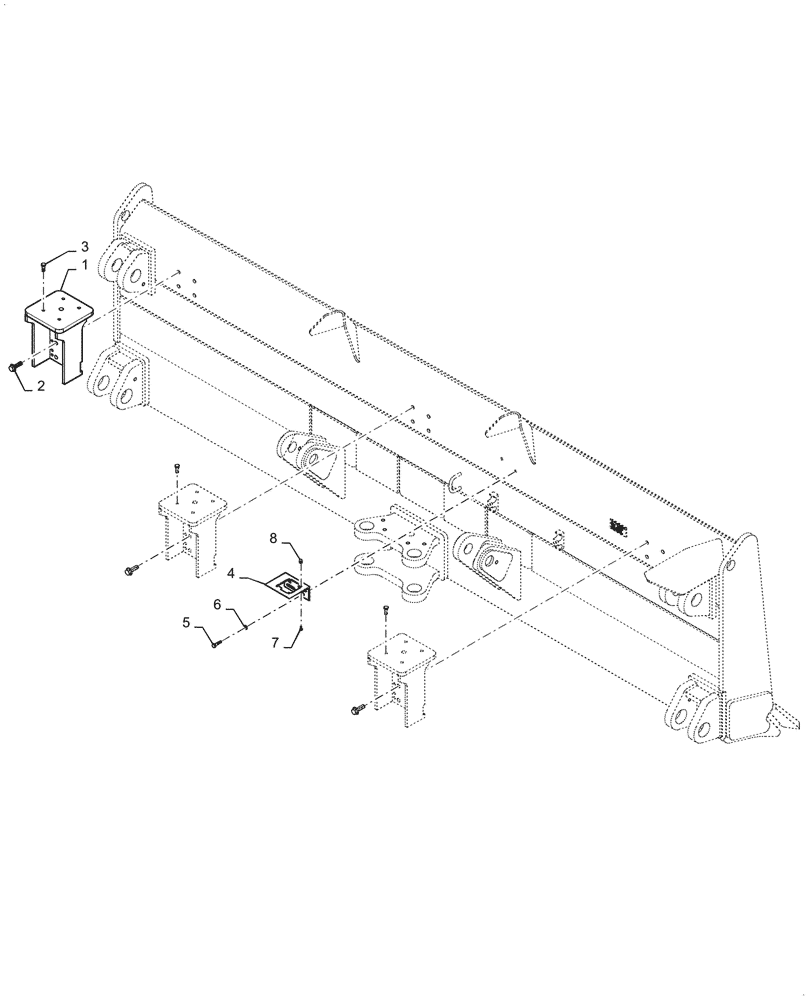

Схема запчастей Case 1650M XLT BD - (55.991.010[03]) - VAR - 784605 - TELEMATIC SYSTEM, BULL BLADE, MOUNTING PARTS, TRIMBLE READY (55) - ELECTRICAL SYSTEMS
8
6
7
1
3
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47411774

BRACKET

Side Mast

3шт.

2

87698849

BOLT,M16 x 50mm, Cl 10.9

12шт.

3

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

12шт.

4

47411778

BRACKET

Slope Sensor

1шт.

5

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

6

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

7

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

4шт.

8

87310307

CROWN NUT,Crown, 1/4"-20

4шт.
