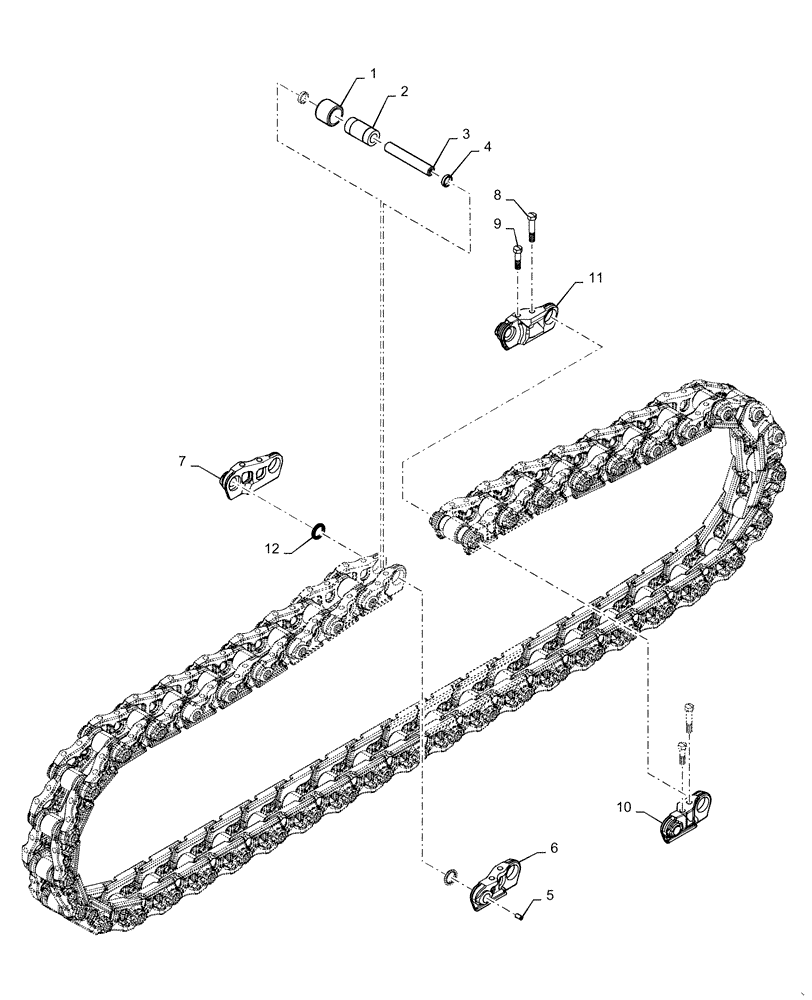

Запчасти Case 1650M XLT (48.100.AD[11]) - TRACK CHAIN 45 LINK CELT (48) - TRACKS & TRACK SUSPENSION

1

87567383

BUSHING

Rotating

45шт.

2

87582715

BUSHING,38.45mm ID x 65mm OD x 131.4mm L

45шт.

3

87582716

LARGE PIN

Track

45шт.

4

87582717

THRUST RING,38mm ID x 45mm OD x 11mm H

90шт.

5

87582718

PLUG

Rubber Oil

45шт.

6

87582719

TRACK LINK

Left Hand

44шт.

7

87582720

TRACK LINK

Right Hand

44шт.

8

87582724

BOLT,Hex, 3/4" - 16 x 99mm

Master Link

2шт.

9

87582725

BOLT,Hex, 3/4" - 16 x 75mm

Master Link

2шт.

10

87582722

TRACK LINK

Master Link Left Hand

1шт.

11

87582721

TRACK LINK

Master Link Right Hand

1шт.

12

87582727

SEAL,55mm ID x 63mm OD x 10.7mm Thk

Track Chain

90шт.

13

87582752

TRACK CHAIN

Complete 45 Link CELT Track Chain

1шт.
