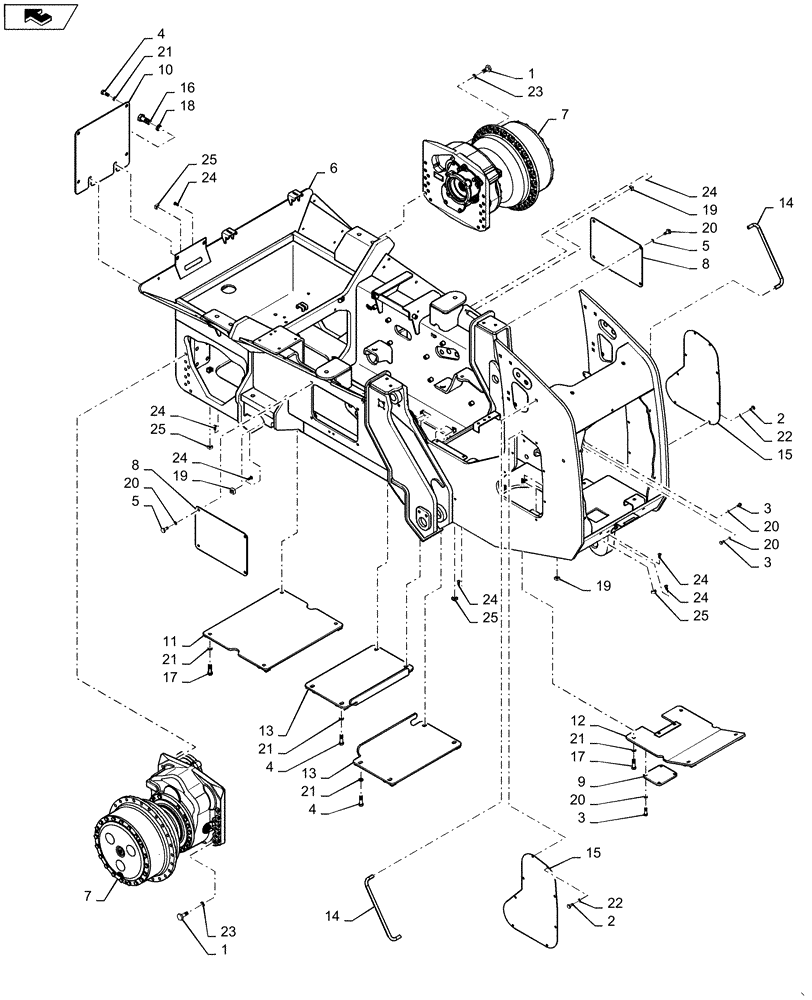

Запчасти Case 1650M XLT (39.100.AB[04]) - TRACK FRAME - NARROW (39) - FRAMES AND BALLASTING

1

608-20080

BOLT,Hex, Lock, M20 x 80, Cl 10.9

36шт.

2

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

16шт.

3

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

4

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

5

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

6

47571003

FRAME

Painted, Main

1шт.

7

47466858

FINAL DRIVE

2шт.

7

47466858R

REMAN-FINAL DRIVE

D150C WT/LGP CRAWLER DOZER - TIER 4A, FRAMES & BALLSTING (10/13-), Reman for New PN 84315184

2шт.

7

47466858C

CORE-FINAL DRIVE

Return Number

2шт.

8

84375567

COVER

Fender

2шт.

9

84530201

COVER PLATE

W/ Rear Belly Pan

1шт.

10

84530204

COVER PLATE

W/ Front Belly Pan

1шт.

11

84375837

PLATE

Oil Drain Cover

1шт.

12

84381503

PLATE

Center Box

1шт.

13

84544923

PLATE

Belly Pan Bracket

2шт.

14

84544970

HANDLE

Narrow Frame Powertrain

2шт.

15

84578277

COVER

Plate

2шт.

16

86639036

BOLT,Hex, M24 x 60mm, Cl 10.9, Full Thd

2шт.

17

86837482

BOLT,Hex, M16 x 55, 10.9, Full Thd

8шт.

18

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

2шт.

19

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

M12 x 1.75, Square

12шт.

20

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12, 13.65 x 24.9 x 3.2

16шт.

21

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

M16, 17.75 x 31.5 x 4.2

20шт.

22

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10, 10.65 x 23.0 x 2.2

16шт.

23

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

M20, 21.25 x 38.1 x 4.2

36шт.

24

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

32шт.

25

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

M16 x 2, Square

20шт.
