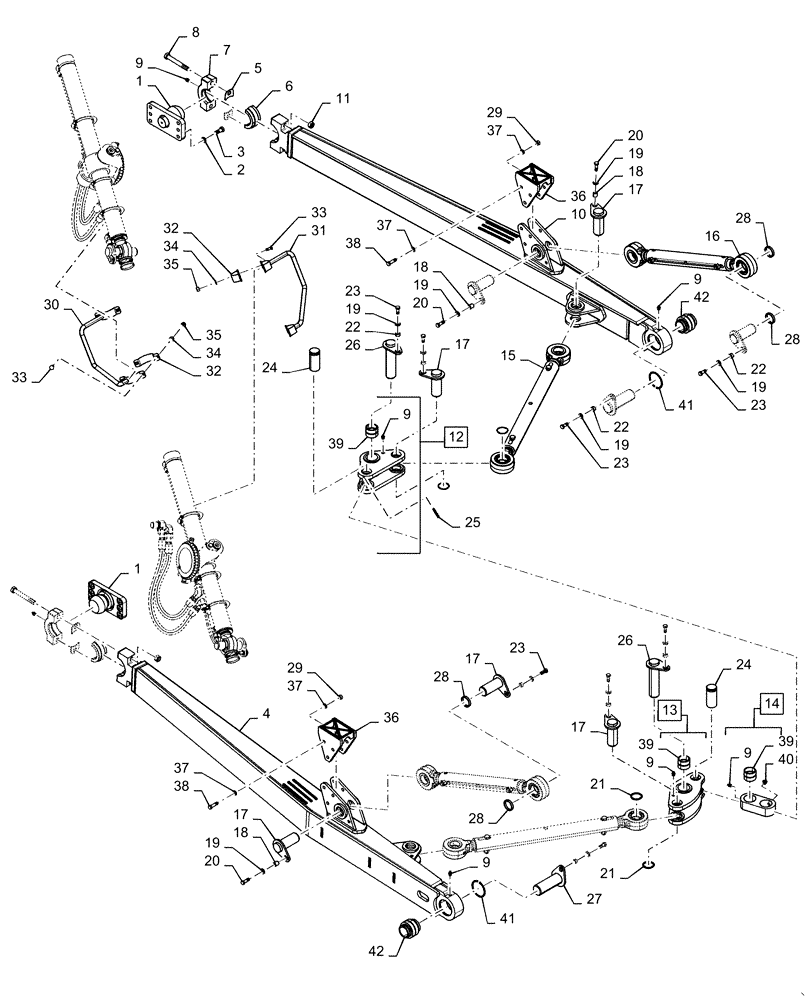

Запчасти Case 1650M XLT (35.766.AM[01]) - PUSH BEAM (35) - HYDRAULIC SYSTEMS

1

84392893

BALL

LT/XLT

2шт.

2

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

12шт.

3

9843590

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

12шт.

4

47579103

BEAM

Right Hand Push

1шт.

5

84326095

WASHER

4шт.

6

84566880

HALF-BUSHING

2шт.

7

84586518

BEARING CAP

Rear

2шт.

8

16047131

SCREW,M24 x 180mm, Cl 10.9

4шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Dryseal

6шт.

10

47579099

BEAM

Left Hand Push

1шт.

11

9848973

NUT,M24 x 3.0, Cl 10

4шт.

12

84550345

LINK

Left Hand Equistatic

1шт.

13

84550346

LINK

Right Hand Equistatic

1шт.

14

84326261

LINK

Center

1шт.

15

84547996

ROD

Push Beam LT/XLT

2шт.

16

84547997

TIE-ROD

Pitch Link

1шт.

17

84549509

PIN,63.45mm OD x 173mm L

8шт.

18

84538735

SPACER,16.5mm ID x 25.5mm OD x 26mm L

4шт.

19

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

12шт.

20

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

21

84551039

SPACER,63.6mm ID x 72.5mm OD x 4.5mm L

4шт.

22

84380519

SPACER,16.5mm ID x 25.5mm OD x 12.75mm L

Mounting

8шт.

23

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

8шт.

24

84327520

PIN,63.4mm OD x 142mm L

60mm

2шт.

25

13917770

ROLL PIN,M10 x 90, Coiled

Spina Rinforzata

2шт.

26

84550548

PIN,63.45mm OD x 264mm L

Pivot

2шт.

27

84550551

PIN,69.7mm OD x 218mm L

Blade

2шт.

28

84566311

SPACER,63.6mm ID x 72.5mm OD x 11.5mm L

4шт.

29

392530

NUT,M16, Cl 10

12шт.

30

47624505

HANDLE

Right Hand Cylinder

1шт.

31

47624508

HANDLE

Left Hand Cylinder

1шт.

32

47624510

CLAMP

Cylinder Handle

4шт.

33

87035385

CARRIAGE BOLT,Sht Sq Nk, M12 x 35mm, Cl 8.8, Full Thd

8шт.

34

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

35

412126

NUT,M12 x 1.75

8шт.

36

47581817

STEP

Push Beam

2шт.

37

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

38

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

12шт.

39

84550407

BUSHING,63.5mm ID x 76.5 OD x 59.5mm L

4шт.

40

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

41

87016938

SNAP RING,#433, 4.641", Int

1шт.

42

84552473

BEARING ASSY

Spherical

1шт.
