Запчасти Case 1650M XLT (35.741.AJ[04]) - LIFT CYLINDER, ASSY BD ONLY (35) - HYDRAULIC SYSTEMS

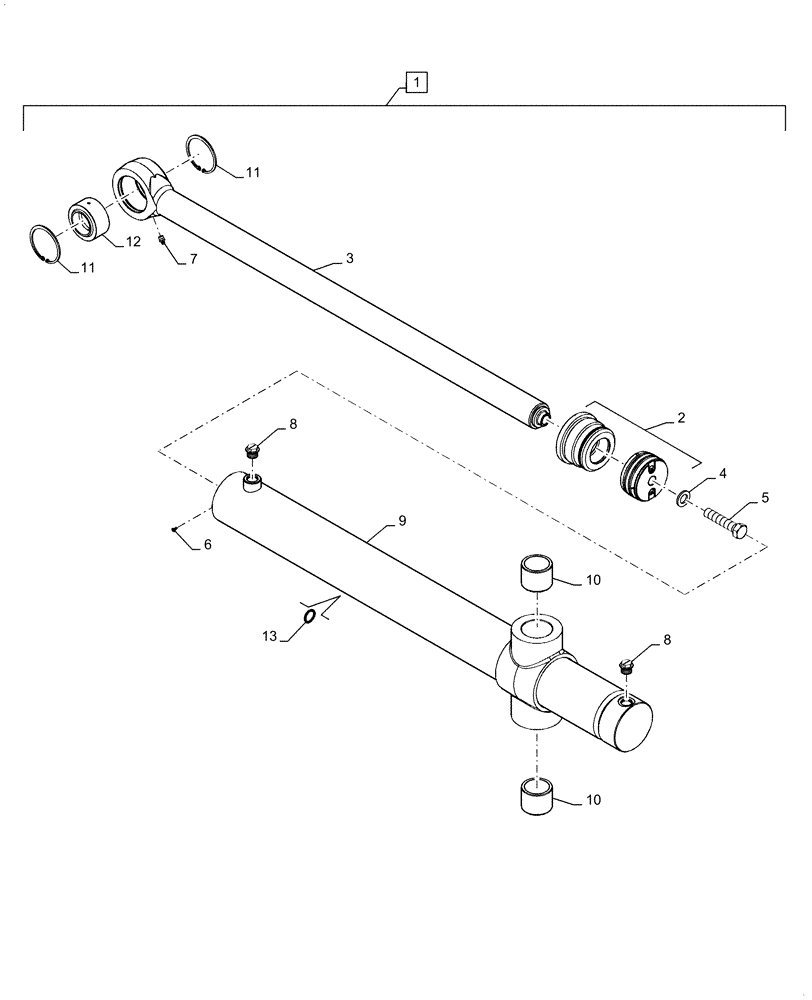

Схема запчастей Case 1650M XLT - (35.741.AJ[04]) - LIFT CYLINDER, ASSY BD ONLY (35) - HYDRAULIC SYSTEMS
6
5
11
12
8
11
7
10
4
10
1
3
13
2
8
9

Артикул

Название

Примечание

Количество

1

47938918

HYDRAULIC CYLINDER

Lift Cylinder Assembly, Incl 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

Gland Pack Assembly, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Rod Assembly, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Washer, Internal, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Bolt, Internal, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Cylinder Body Locking Screw, Incl in 1

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

8

86625121

PLUG,Sltd Hd, 7/8"-14, Incl NSS O-Ring

2шт.

9

NSS

NOT SOLD SEPARAT

Cylinder Tube, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Bushing, Trunnion Section, Incl in 1

2шт.

11

100-21315

SNAP RING,3.156", Int, #315

2шт.

12

D23601

HOUSING

Bushing, Rod Eye

1шт.

13

47664634

Service Set

1шт.

Выбрано товаров: 13
