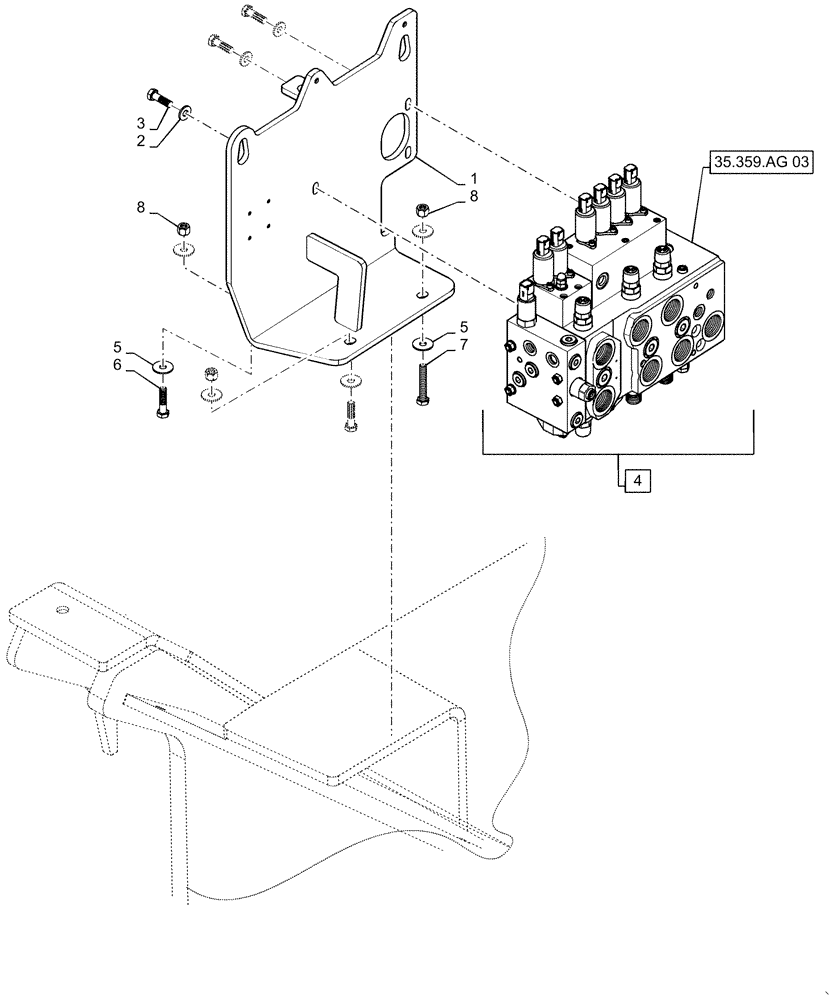

Запчасти Case 1650M XLT (35.102.AE [05]) - CONTROL VALVE ASSY, 2 SP BD (35) - HYDRAULIC SYSTEMS

1

47457442

BRACKET

Valve Mount

1шт.

2

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

4

47480669

CONTROL VALVE

2 Spool

1шт.

5

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

M10 10.65 x 31.0 x 3.0

6шт.

6

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

7

614-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

3шт.
