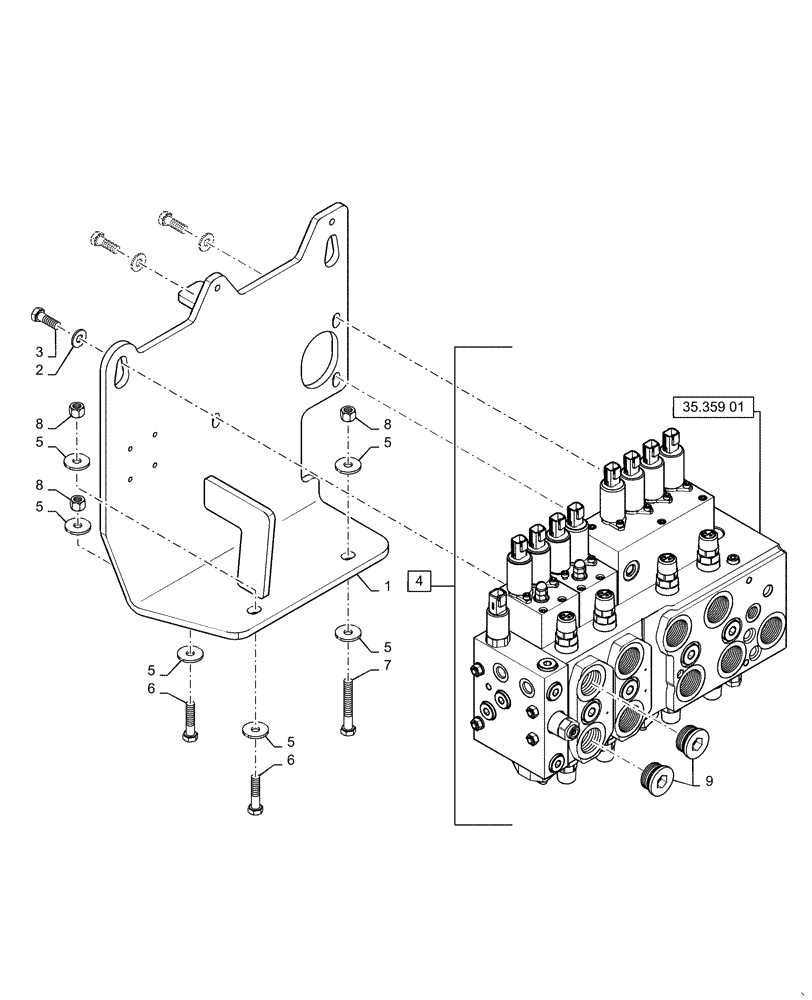

Запчасти Case 1650M XLT (35.102.AE [02]) - CONTROL VALVE ASSY, 3 SP W/PLUGS (35) - HYDRAULIC SYSTEMS

1

47457442

BRACKET

1шт.

2

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

4

47480677

CONTROL VALVE

1шт.

5

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

6шт.

6

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

7

538885

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

9

87363628

PLUG,1 - 5/16" - 12

2шт.
